Connector End Views & Electrical Component Locations: S246
Harness-Family: Body
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

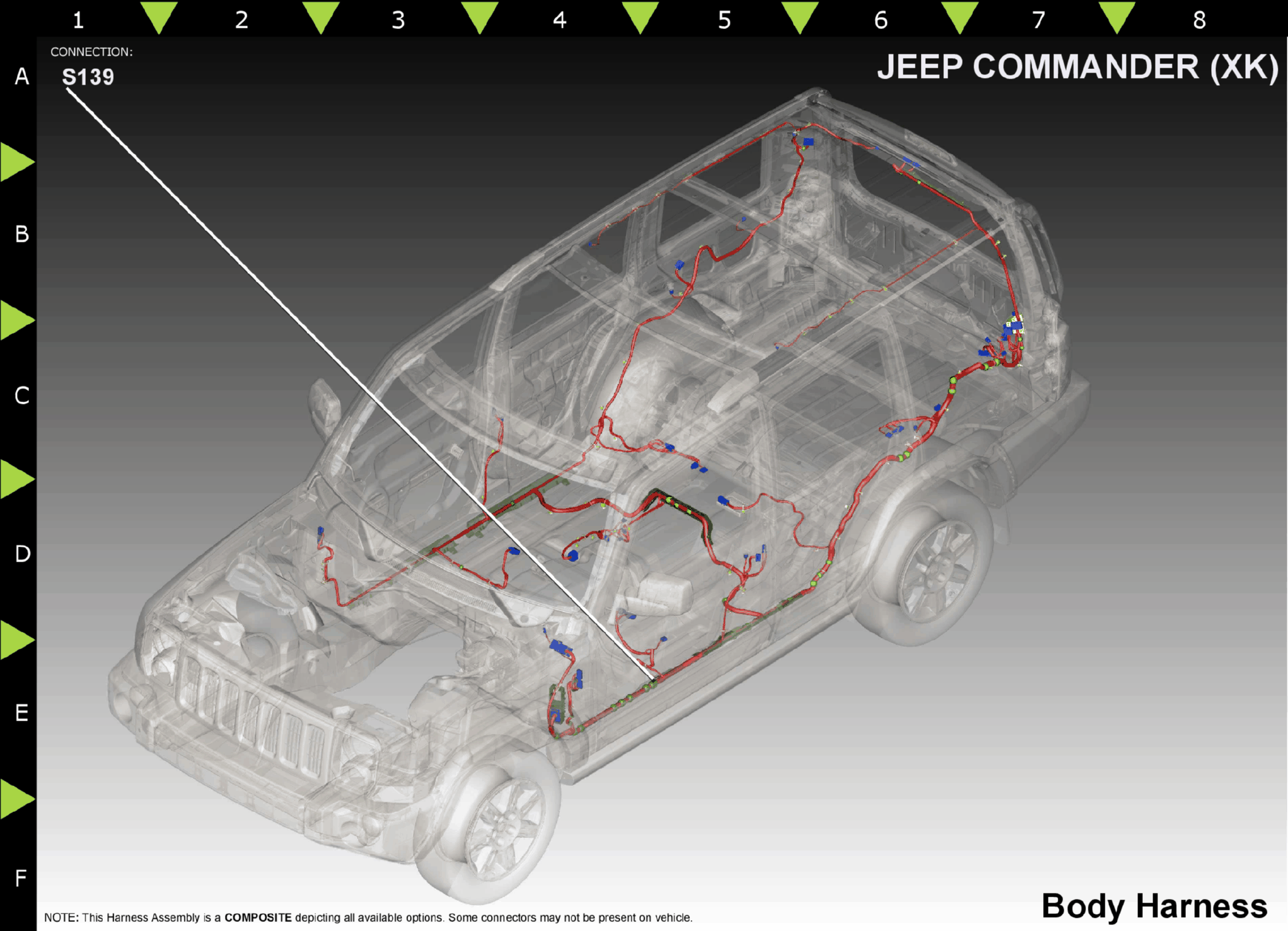

Connector No: S139
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | X536 | NA | 18 | VIDEO SHIELD 1 | N/A | ||
| 2 | X536 | DG/TN | 20 | VIDEO SHIELD 1 | N/A | ||
|
|||||||
