Connector End Views & Electrical Component Locations: S232

Harness-Family: Steering_Wheel

Color: NA

Gender: FEMALE

Part Number: TBD

Part Description: Not Available

Connector No: S232

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S232 Connector End View

Courtesy of CHRYSLER

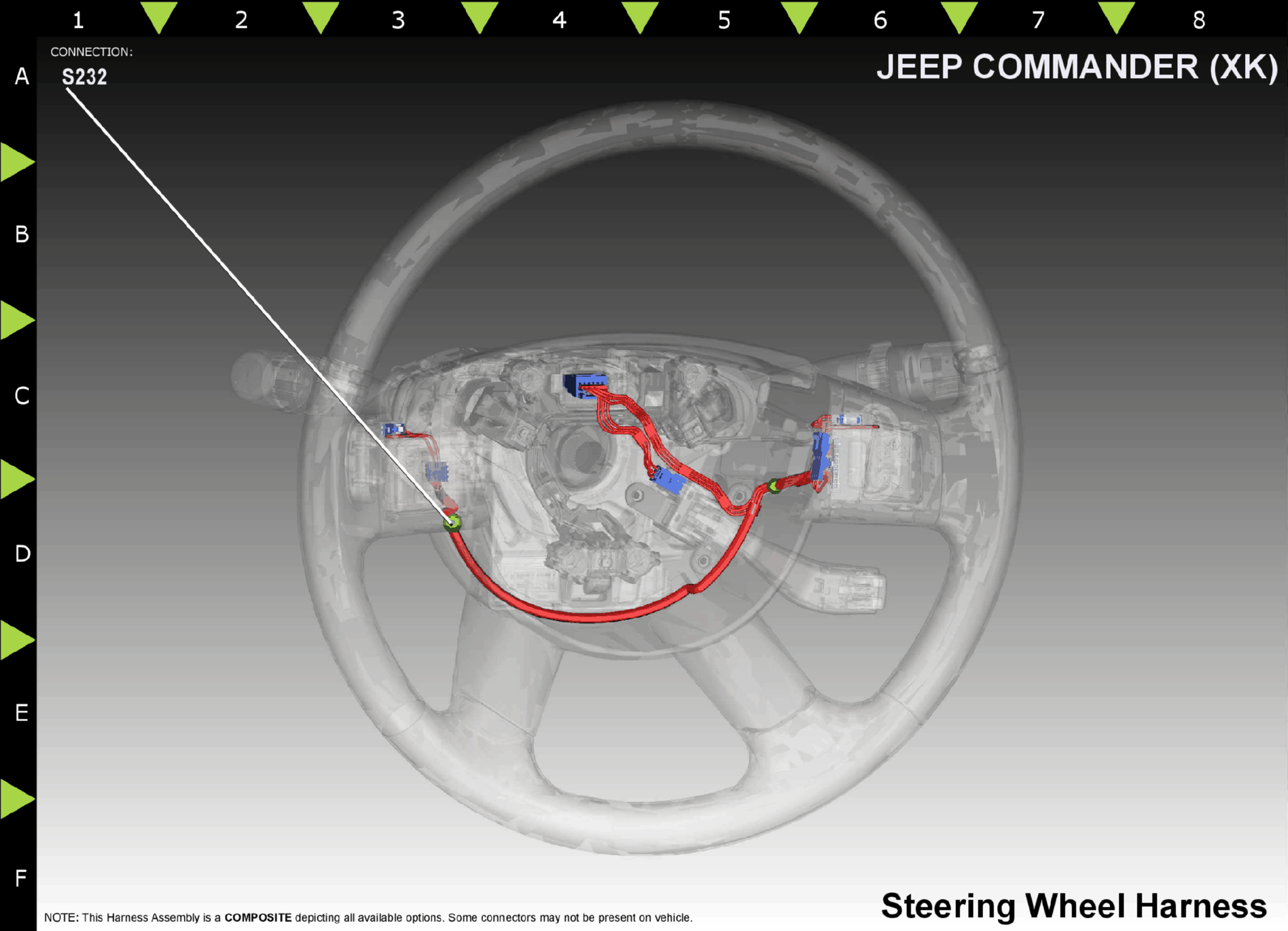

Fig 2: S232 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X20

GY/WT

RADIO CONTROL MUX

N/A

X20

GY/WT

RADIO CONTROL MUX

N/A

X20

GY/WT

RADIO CONTROL MUX

N/A

⁽¹⁾	Pins not listed are not used for this connector
