Connector End Views & Electrical Component Locations: S147
Harness-Family: Engine
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

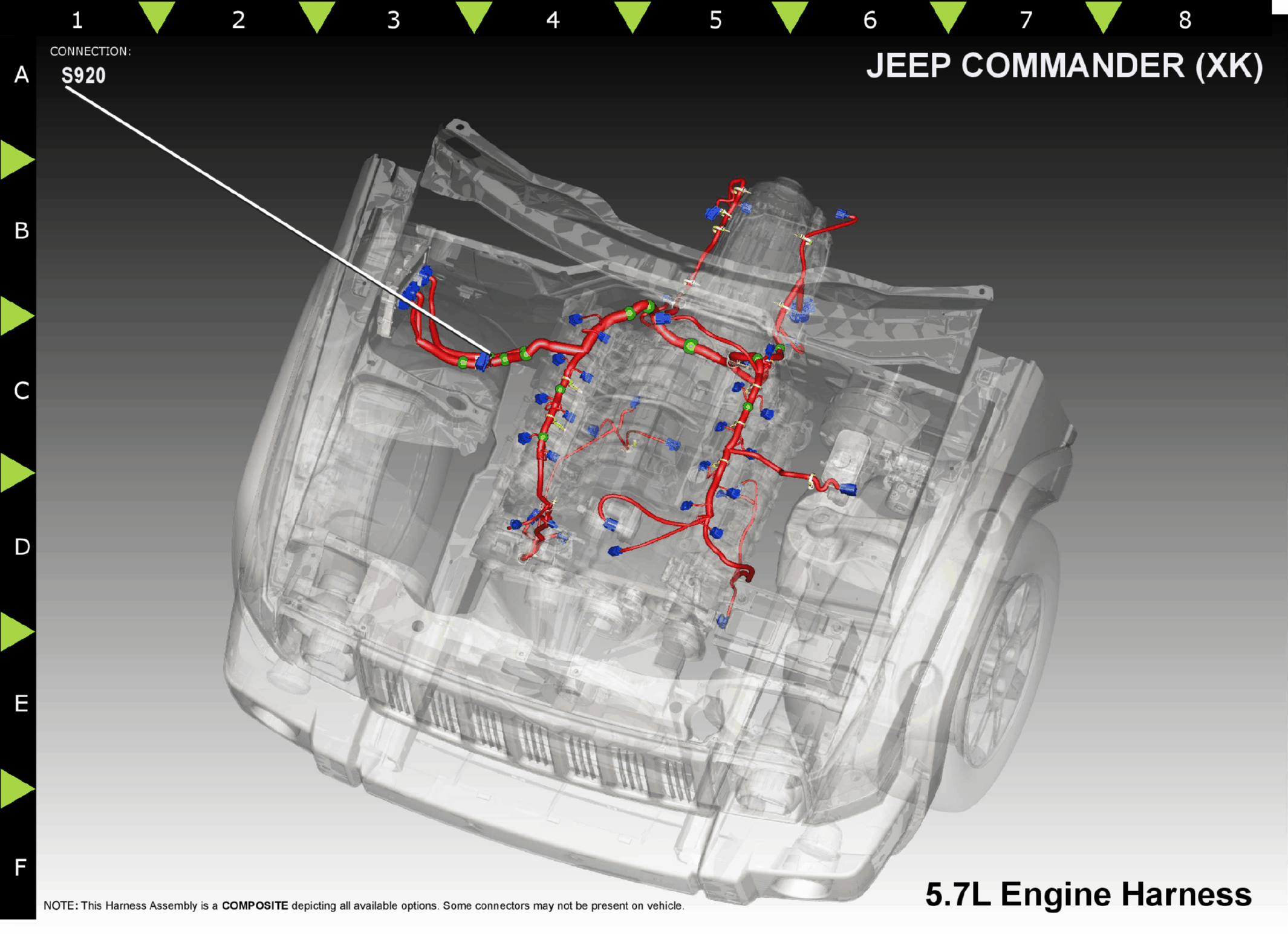

Connector No: S920
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z903 | BK | 16 | GROUND | N/A | ||
| 2 | Z903 | BK | 16 | GROUND | N/A | ||
| 3 | Z903 | BK | 16 | GROUND | N/A | ||
| 4 | Z903 | BK | 16 | GROUND | N/A | ||
|
|||||||
