COVER, Structural Dust: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

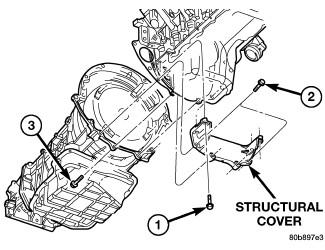

Fig 1: Identifying Structural Cover
GC0104489Courtesy of CHRYSLER LLC
1 - STRUCTURAL COVER TO ENGINE BOLTS
2 - STRUCTURAL COVER TO TRANSMISSION BOLTS
2 - TRANSMISSION TO STRUCTURAL COVER BOLTS
CAUTION: The structural dust cover must be installed as described in the following steps. Failure to do so may cause severe damage to the cover.
  1. Position the structural cover in the vehicle.
  2. Install all bolts (1, 2, and 3) retaining the cover-to-engine. DO NOT  tighten the bolts at this time.
  3. Install the four cover-to-transmission bolts. Do NOT tighten at this time.
    CAUTION: The structural dust cover must be held tightly against both the engine and the transmission bell housing during the tightening sequence. Failure to do so may cause severe damage to the cover.
  4. Starting with the two rear cover-to-engine bolts, tighten bolts (1) to 54 N.m (40 ft. lbs.), then tighten bolts (2) and (3) to 54 N.m (40 ft. lbs.) in the sequence shown in illustration.
  5. Install the exhaust pipe on left hand exhaust manifold.
  6. Tighten exhaust manifold-to-exhaust pipe retaining bolts to 20 - 26 N.m (15-20 ft. lbs.).
