SENSOR, Knock: Description: Description

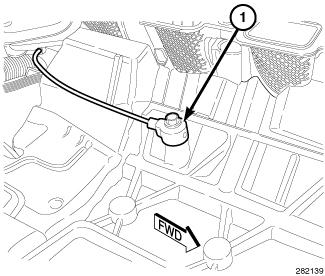

Fig 1: KNOCK SENSOR - 3.7L

Courtesy of CHRYSLER LLC

3.7L  - Two knock sensors (1) are bolted to the cylinder block under the intake manifold.

Fig 2: Knock Sensor - 4.7L

Courtesy of CHRYSLER LLC

4.7L  - One knock sensor (1) is bolted to the cylinder block under the intake manifold.

Fig 3: 5.7L KNOCK SENSOR

Courtesy of CHRYSLER LLC

5.7L  - Two knock sensors (1) are bolted to each side of the cylinder block (outside) under each exhaust manifold (3).
