INA Decoupler

Disconnect negative battery cable.
Remove generator and accessory drive belt. Refer toGenerator Removal .

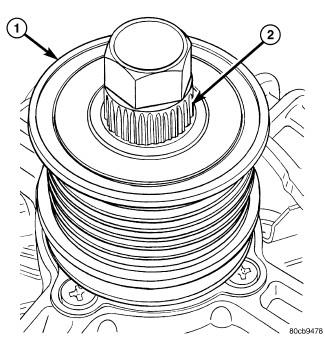

Fig 1: 8823 TOOL AND INA DECOUPLER
Courtesy of CHRYSLER LLC

1 - INA DECOUPLER

2 - TOOL 8823 (VM.1048)
Position Special Tool 8823 (VM.1048) (2) into decoupler (1) .

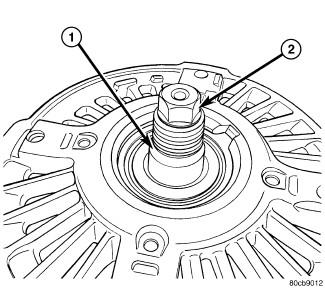

Fig 2: END OF GENERATOR SHAFT (HEX)
Courtesy of CHRYSLER LLC

1 - GENERATOR SHAFT

2 - HEX
Determine if end of generator shaft is hex shaped (2) .

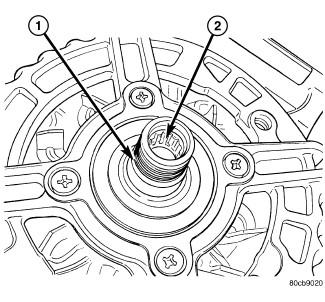

Fig 3: END OF GENERATOR SHAFT (SPLINED)
Courtesy of CHRYSLER LLC

1 - GENERATOR SHAFT

2 - SPLINES
or is end of generator shaft splined (2) .

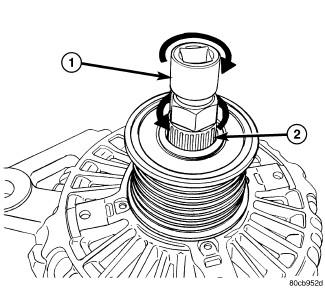

Fig 4: DECOUPLER REMOVAL (INA-HEX)
Courtesy of CHRYSLER LLC

1 - DEEP 10 MM SOCKET

2 - TOOL 8823 (VM.1048)

If hex is used, insert a 10MM deep socket (1) into tool 8823 (VM.1048) .

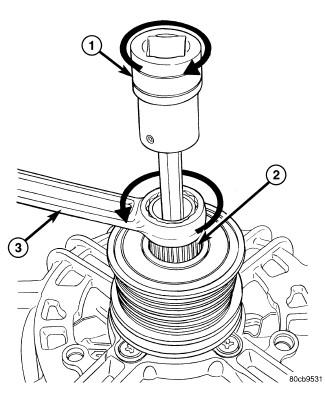

Fig 5: DECOUPLER REMOVAL (INA-SPLINED)

Courtesy of CHRYSLER LLC

1 - DRIVER

2 - TOOL 8823 (VM.1048)

3 - 17 MM WRENCH

If splined, insert a 5/16" 6-point hex driver (1), or a 10MM 12-point triple square driver into tool 8823 (VM.1048) .

Fig 6: DECOUPLER REMOVAL (INA-HEX)
Courtesy of CHRYSLER LLC

1 - DEEP 10 MM SOCKET

2 - TOOL 8823 (VM.1048)

The generator shaft uses conventional right-hand threads to attach decoupler. To break decoupler loose from generator threads, rotate end of tool (1) clockwise or.

Fig 7: DECOUPLER REMOVAL (INA-SPLINED)

Courtesy of CHRYSLER LLC

1 - DRIVER

2 - TOOL 8823 (VM.1048)

3 - 17 MM WRENCH

rotate end of tool (1) clockwise .
After breaking loose with tool, unthread decoupler by hand from generator.
