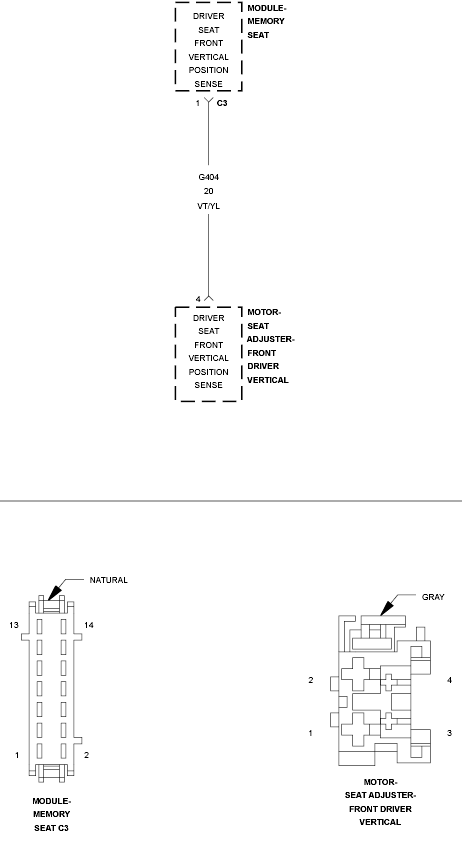

Home >> Jeep >> 2010 >> Commander Limited, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> (Memory Seat Module (MSMD) - Electrical Diagnostics) >> DTC Troubleshooting >> B1D72-Seat Front Vertical Position Sensor Circuit High >> Circuit Schematic
