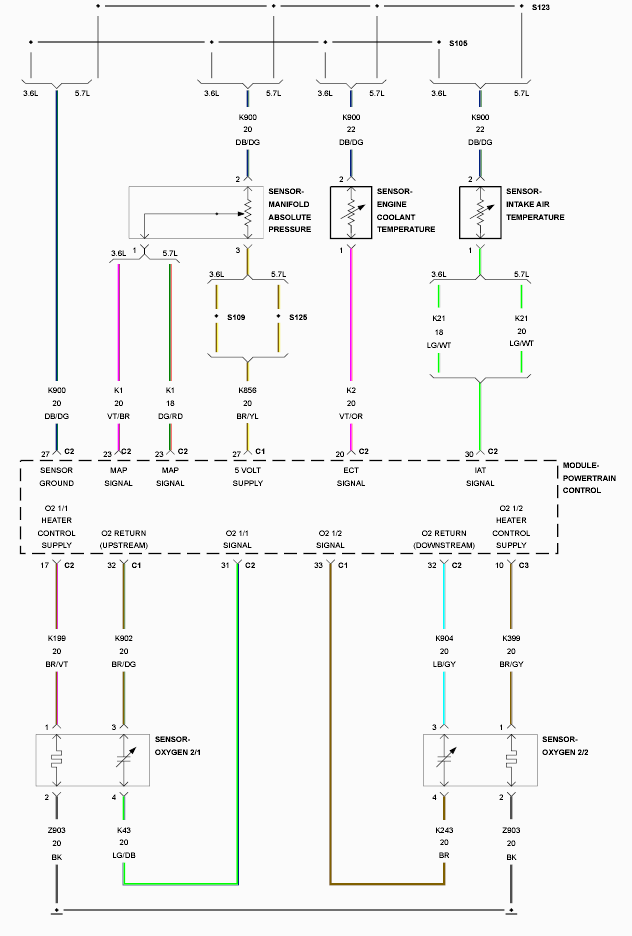

Home >> Jeep >> 2010 >> Commander Limited, 4WD >> Repair and Diagnosis (Single Page) >> Engine Performance >> Testing & Diagnosis >> Gas - NGC - DTCS P0125 To P0174 >> P0160-O2 Sensor 2/2 No Activity Detected >> Circuit Schematic
