Repair and Diagnosis (Single Page)
>>
Electrical
>>
Component Locations
>>
Connector End Views & Electrical Component Locations
>>
TIPM Component Layout And Connector Identification
TIPM Component Layout And Connector Identification

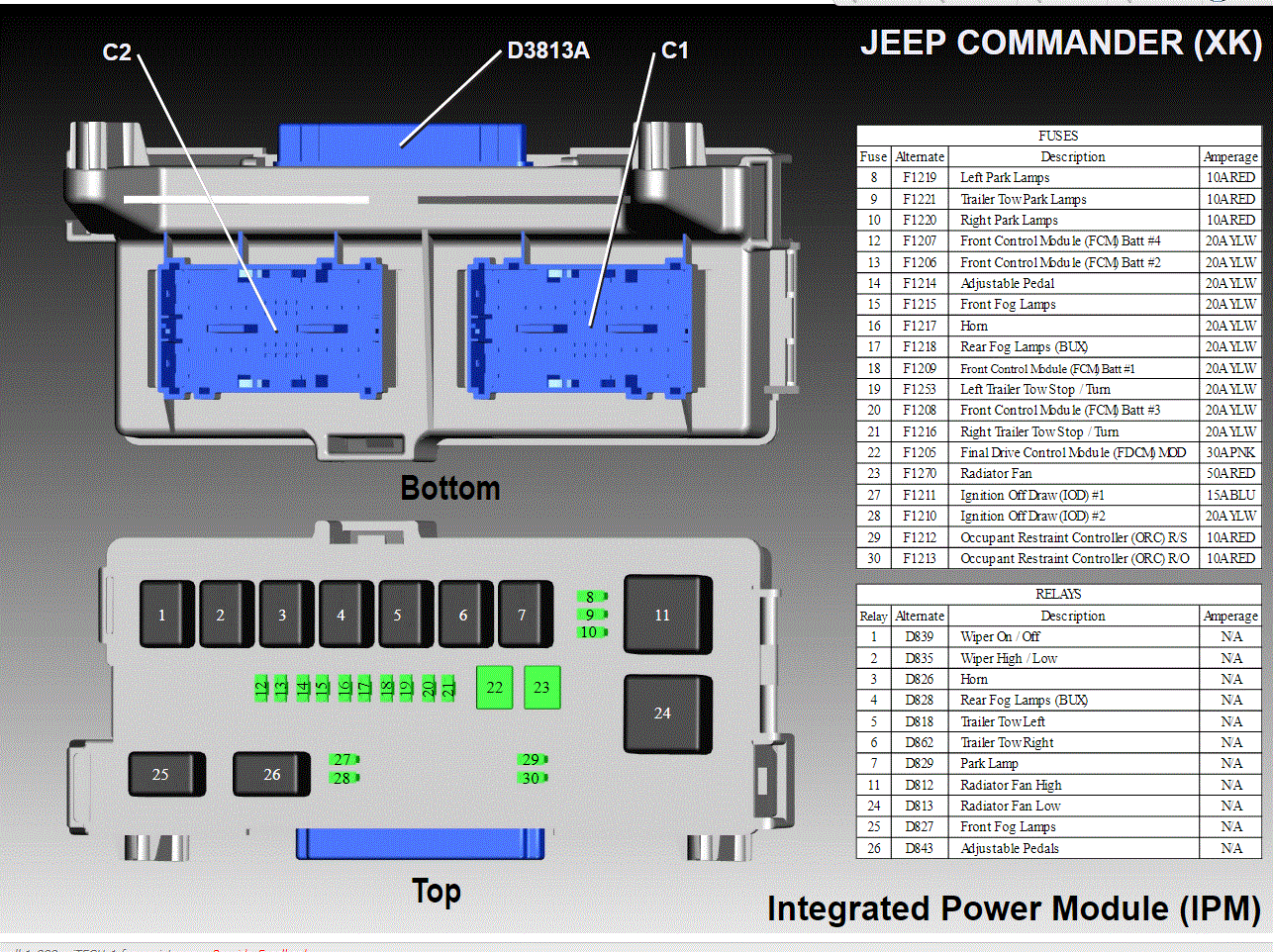

Fig 1: TIPM Layout And Connector Identification
Courtesy of CHRYSLER
Courtesy of CHRYSLER
