Jeep Commander: Notes

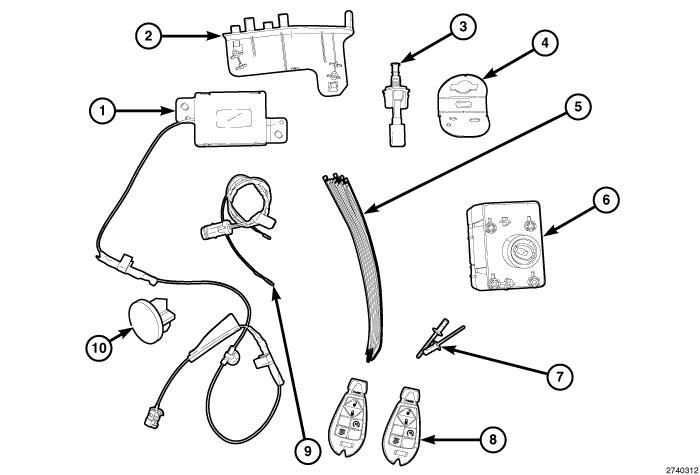

| CALL OUT | DESCRIPTION | QUANTITY |
|---|---|---|
| 1 | WIN Antenna | 1 |
| 2 | WIN Antenna Mounting Bracket | 1 |
| 3 | Hood Ajar Switch | 1 |
| 4 | Hood Ajar Switch Bracket | 1 |
| 5 | Zip Ties | 10 |
| 6 | Wireless Ignition Module (WIN) | 1 |
| 7 | Rivets | 2 |
| 8 | FOBIK | 2 |
| 9 | Hood Ajar Switch Harness | 1 |
| 10 | Hood Striker Plate | 1 |
CAUTION:
WinFobik based vehicles, the sales code must be added to the database and the Restore Vehicle Configuration (using a diagnostic scan tool) must be performed prior to installing the new WIN module. Failure to do so will render the WIN module's remote start function inoperative.
The technician should wait 1/2 hour between adding XBM sales code in DealerConnect before installing the WIN module & restoring vehicle configuration. In the interim, the technician can install all other components except the WIN module.
XBM remote start can ONLY be installed on vehicles that have the following factory options: Automatic Transmission, Remote Keyless Entry and Immobilizer.
WinFobik based vehicles, the sales code must be added to the database and the Restore Vehicle Configuration (using a diagnostic scan tool) must be performed prior to installing the new WIN module. Failure to do so will render the WIN module's remote start function inoperative.
The technician should wait 1/2 hour between adding XBM sales code in DealerConnect before installing the WIN module & restoring vehicle configuration. In the interim, the technician can install all other components except the WIN module.
NOTE:
Prior to installation, obtain the four digit PIN from the dealership's parts department.
NOTE:
REQ radios only must be put into "Transportation Mode" before removal. With Ignition in RUN or ACCESSORY, press SET and DISK simultaneously until the radio displays "TRANSPORTATION" on the display or for 5 seconds.
