MODULE, Engine Control: Description: Description
Courtesy of CHRYSLER LLC

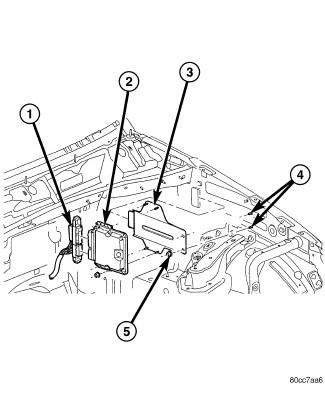

| 1 - ECM ELECTRICAL CONNECTORS |
| 2 - ENGINE CONTROL MODULE (ECM) |
| 3 - ECM MOUNTING BRACKET |
| 4 - ECM MOUNTING BRACKET MOUNTING STUDS |
| 5 - MOUNTING BRACKET RETAINING NUTS |
The Engine Control Module (ECM) is located in the left side of engine compartment attached to the left inner fender behind the battery.
