Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

CHECK FOR RELATED DTCS
1. With the scan tool, read DTCs.
  Is the DTC P0841 present also?

  Yes
  - See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - Go to step 2
CHECK IF THE DTC IS CURRENT
1. With the scan tool, read DTCs.
  Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

  Yes
  - Go to step 3
  No
  - Go to step 7
CHECK THE PCM AND WIRING
1. Turn the ignition off to the lock position.
2. Remove the Ignition Switch Feed fuse from the TIPM.
  CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

  WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install the Transmission Simulator 8333.
4. Ignition on, engine not running.
5. With the Transmission Simulator, turn the Pressure Switch selector switch to the L/R position.
6. With the scan tool, monitor the L/R Pressure Switch state while pressing the Pressure Switch Test button on the Transmission Simulator.
  Did the state of the L/R Pressure Switch change while pressing the Pressure Switch Test button?

  Yes
  - Go to step 4
  No
  - Go to step 5
CHECK THE SOLENOID SWITCH VALVE
1. Remove the Valve Body in accordance with the Service Information.
2. Inspect the Solenoid Switch Valve and plugs for sticking in the bore and/or wear.
  Were there any problems found?

  Yes
  - Clean and repair as necessary in accordance with the Service Information.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 7
CHECK THE L/R PRESSURE SWITCH SENSE CIRCUIT FOR AN OPEN

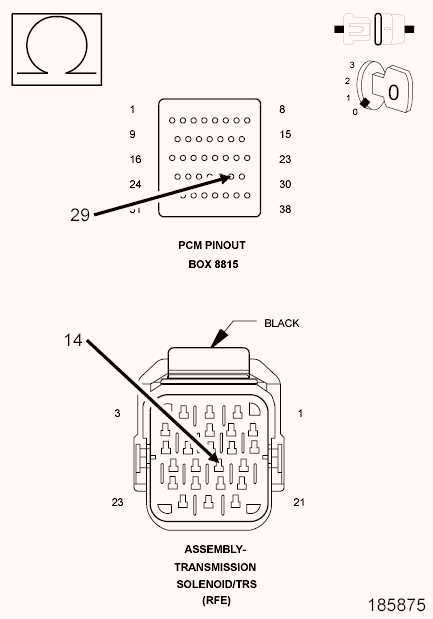

Fig 1: Checking L/R Pressure Switch Sense Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the Transmission Simulator 8333.
3. Disconnect the PCM C4 harness connector and connect the PCM Pinout Box 8815.
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
4. Measure the resistance of the (T50) L/R Pressure Switch Sense circuit between the Solenoid/TRS Assembly harness connector and the appropriate terminal of the PCM Pinout Box 8815.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T50) L/R Pressure Switch Sense circuit for an open.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 6
CHECK THE (T50) L/R PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND

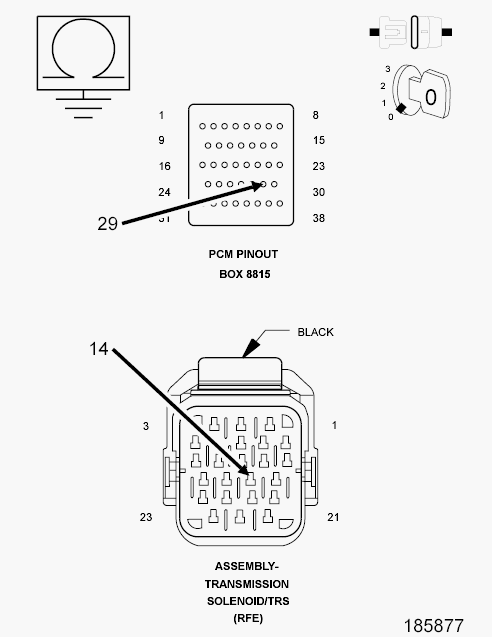

Fig 2: Checking L/R Pressure Switch Sense Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (T50) L/R Pressure Switch Sense circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T50) L/R Pressure Switch Sense circuit for a short to ground.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
CHECK WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. This DTC can also be set by the Solenoid Switch Valve intermittently sticking in it's bore under extreme temperature conditions, or by a worn Solenoid Switch Valve or plugs.
5. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
  Where there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Test Complete.
