Diagnostic Test

WARNING: This page is about a different variant/trim than selected.
  1. CHECK TO SEE IF DTC P0716 IS CURRENT
    1. Start the engine in park.
    2. With the scan tool, monitor the Input Speed Sensor RPM.

      Is the Input Speed Sensor RPM below 400 RPM?

      Yes

      • Go to step  2

      No

      • Go to step  9
  2. INPUT SPEED SENSOR
    1. Turn the ignition off to the lock position.
    2. Remove the Ignition Switch Feed fuse from the TIPM.
      CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.
      WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
    3. Install the Transmission Simulator 8333.
    4. Ignition on, engine not running.
    5. With the Transmission Simulator, set the selector switch to 3000/1000 and the Input/Output switch to ON.
    6. With the scan tool, monitor the Input and Output Speed Sensor RPM.

      Does the Input speed read 3000 RPM and the Output speed read 1000 RPM ± 50 RPM?

      Yes

      No

      • Go to step  3
  3. (T52) INPUT SPEED SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

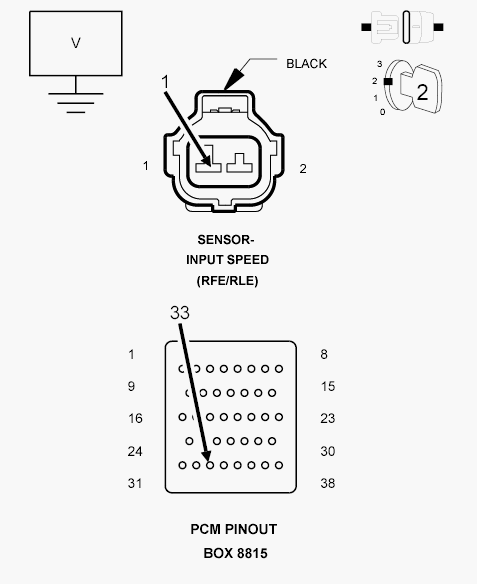

    Fig 1: Checking Input Speed Sensor Signal Circuit
    GC0090503Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position.
    2. Disconnect the PCM C4 harness connector and connect the PCM Pinout Box 8815.
      NOTE: Make sure to leave the Speed Sensor, Transmission Solenoid/TRS Assembly, and Line Pressure Sensor harness connectors disconnected.
      CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
    3. Ignition on, engine not running.
    4. With the scan tool in TIPM, actuate the TCM output.
    5. Measure the voltage of the (T52) Input Speed Sensor Signal circuit.

      Is the voltage above 0.5 of a volt?

      Yes

      No

      • Go to step  4
  4. (T13) SPEED SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

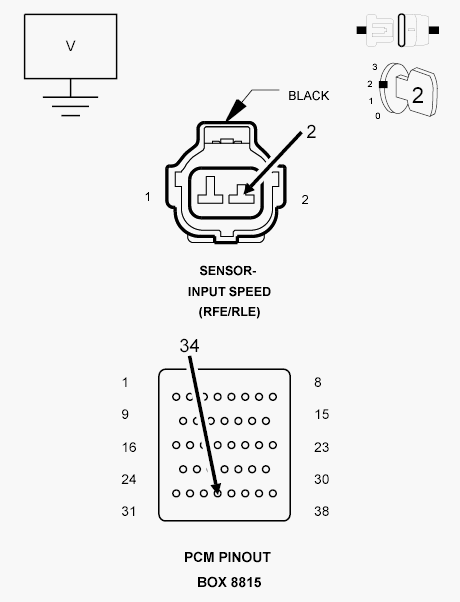

    Fig 2: Checking Speed Sensor Ground Circuit
    GC0111712Courtesy of CHRYSLER LLC
    1. With the scan tool in TIPM, actuate the TCM output.
    2. Measure the voltage of the (T13) Speed Sensor Ground circuit.

      Is the voltage above 0.5 of a volt?

      Yes

      No

      • Go to step  5
  5. (T52) INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN
    Fig 3: Checking Input Speed Sensor Signal Circuit
    GC0106897Courtesy of CHRYSLER LLC
    1. With the scan tool in TIPM, stop the actuation the TCM output.
    2. Turn the ignition off to the lock position.
    3. Measure the resistance of the (T52) Input Speed Sensor Signal circuit between the Input Speed Sensor harness connector and the appropriate terminal of the PCM Pinout Box 8815.

      Is the resistance above 5.0 Ohms?

      Yes

      No

      • Go to step  6
  6. (T13) SPEED SENSOR GROUND CIRCUIT OPEN
    Fig 4: Checking Sensor Ground Circuit
    GC0106898Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (T13) Speed Sensor Ground circuit between the Input Speed Sensor harness connector and the appropriate terminal of the PCM Pinout Box 8815.

      Is the resistance above 5.0 Ohms?

      Yes

      No

      • Go to step  7
  7. (T52) INPUT SPEED SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
    Fig 5: Checking Input Speed Sensor Signal Circuit
    GC0106899Courtesy of CHRYSLER LLC
    1. Measure the resistance between ground and the Input Speed Sensor Signal circuit.

      Is the resistance below 5.0 Ohms?

      Yes

      No

      • Go to step  8
  8. (T13) SPEED SENSOR GROUND CIRCUIT SHORTED TO GROUND
    Fig 6: Checking Speed Sensor Ground Circuit
    GC0106900Courtesy of CHRYSLER LLC
    1. Measure the resistance between ground and the (T13) Speed Sensor Ground circuit.

      Is the resistance below 5.0 Ohms?

      Yes

      No

      • Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
      • Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  9. CHECK THE WIRING AND CONNECTORS
    1. The conditions necessary to set this DTC are not present at this time.
    2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
    3. Wiggle the wires while checking for shorted and open circuits.
    4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.

      Were there any problems found?

      Yes

      No

      • Test Complete.
