DTCS P2173 To U1110 - NGC
>>
U0001-Can C Bus
>>
Notes
U0001-Can C Bus: Notes

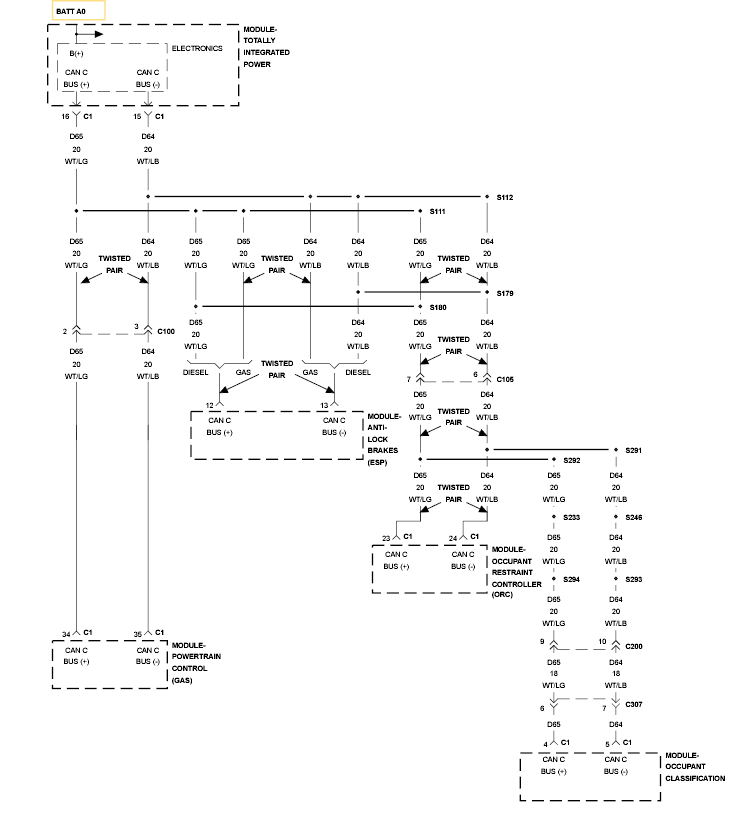

Fig 1: CAN C Bus Circuit
Courtesy of CHRYSLER LLC
Fig 1: CAN C Bus Circuit
Courtesy of CHRYSLER LLC
