P0645-A/C Clutch Control Circuit: Notes

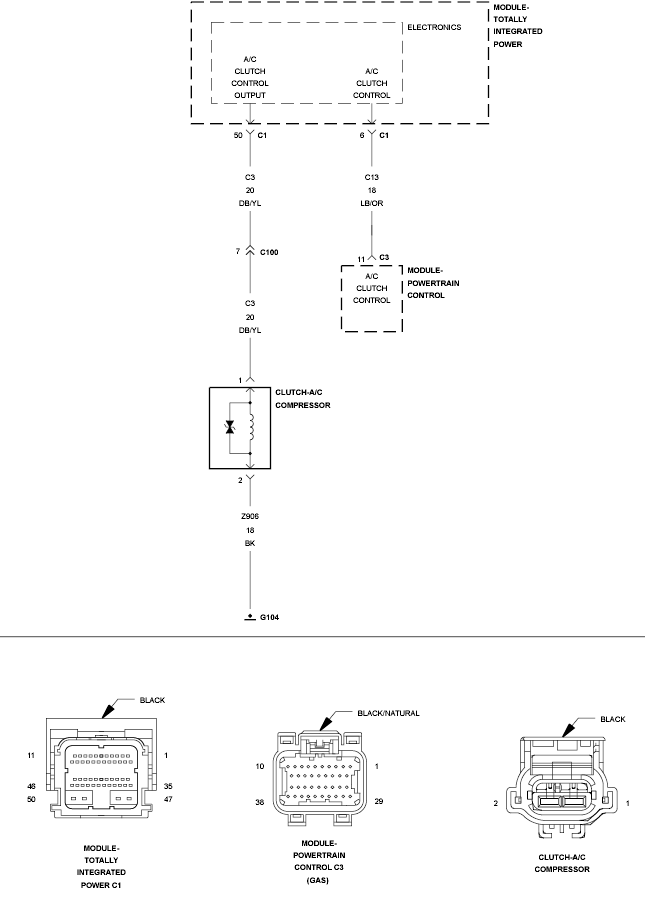

Fig 1: A/C Clutch Control Circuit

GC0131932

Courtesy of CHRYSLER LLC
