Upper Intermediate Shaft

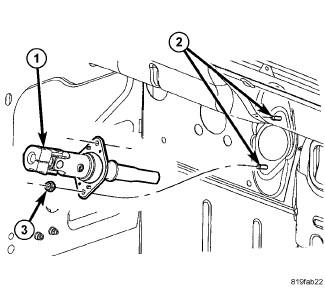

Fig 1: UPPER INTERMEDIATE SHAFT TO COWL

Courtesy of CHRYSLER LLC

Install the intermediate shaft (1) to studs (2) at the cowl.
Install the two mounting nuts (3). Tighten to 13 N.m (115 in. lbs).

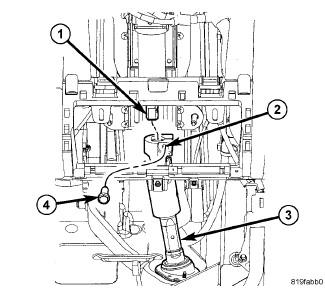

Fig 2: UPPER PINCH AT COLUMN
Courtesy of CHRYSLER LLC
Install the upper shaft coupler (2) to the steering column (1).
Install and tighten the pinch bolt (4) to 49 N.m (36 ft. lbs.).

Fig 3: PINCH BOLT AT THE COLUMN SHAFT
Courtesy of CHRYSLER LLC
Install the lower intermediate shaft coupler (3) to the upper intermediate shaft (1).
Install the pinch bolt (2) and tighten the bolt to 49 N.m (36 ft. lbs.).
Unlock the steering wheel.
Reconnect the negative battery cable.
