U110E-Lost Ambient Temperature Message: Notes

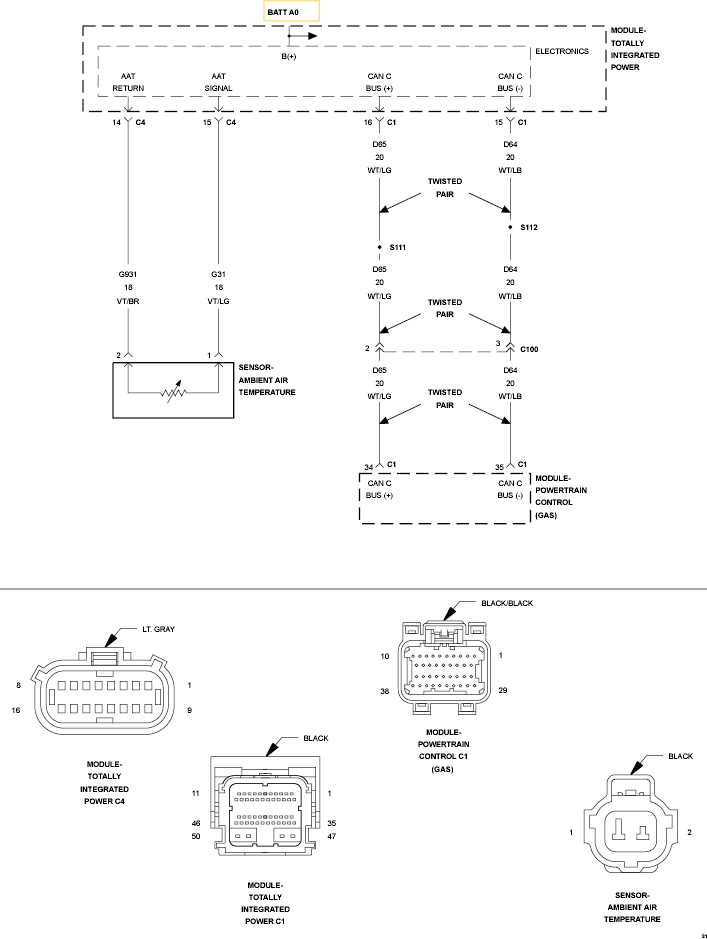

Fig 1: Ambient Air Temperature Sensor Circuit

GC0131880

Courtesy of CHRYSLER LLC
