P2101-Electronic Throttle Control Motor Performance: Notes

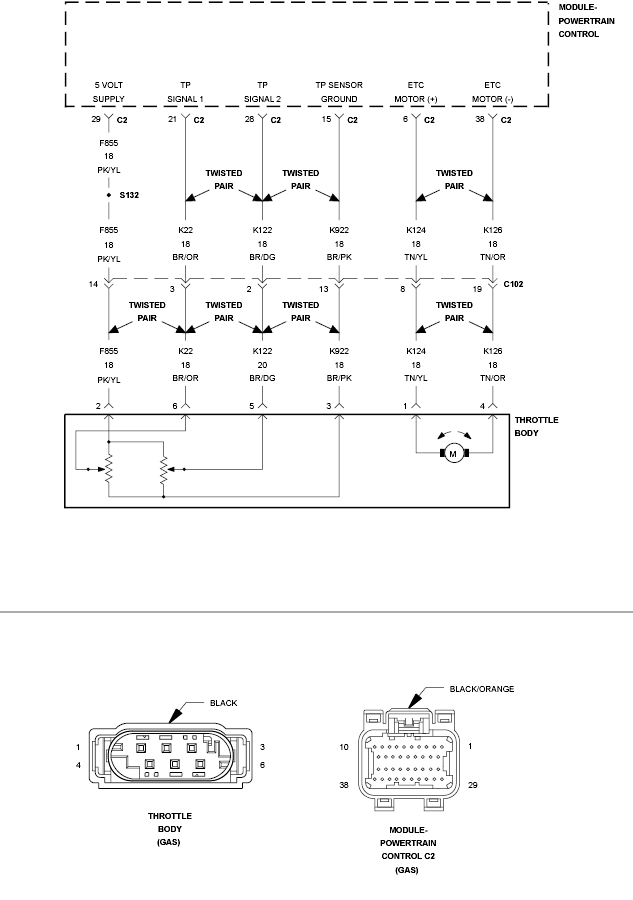

Fig 1: Throttle Position Sensor Circuit

GC0131884

Courtesy of CHRYSLER LLC
