Home >> Jeep >> 2009 >> Wrangler X, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0441 To P0573 - NGC >> P0571-Brake Switch 1 Performance >> Notes

P0571-Brake Switch 1 Performance: Notes

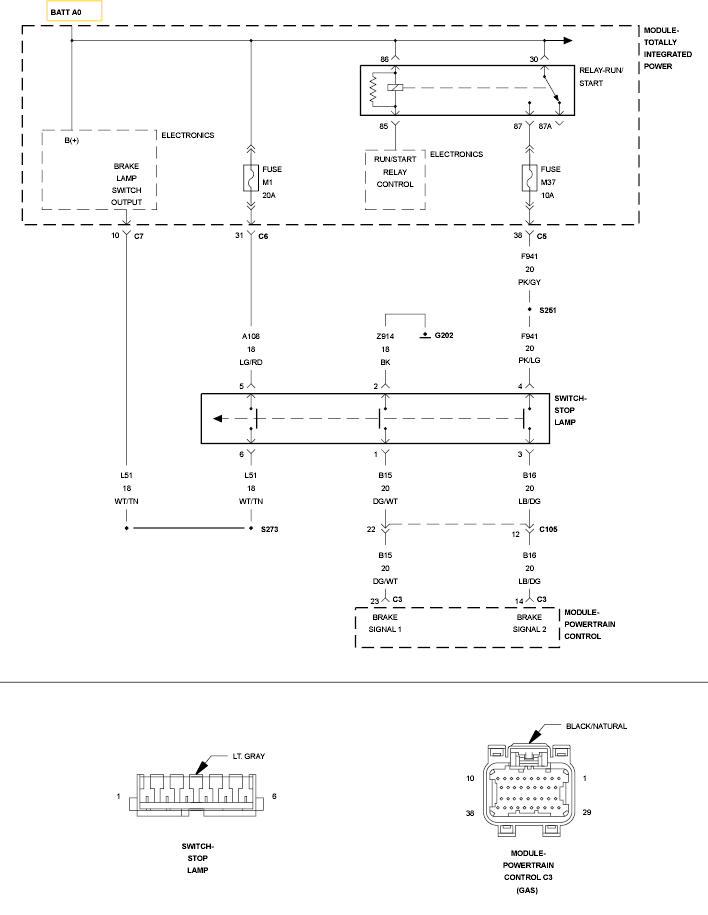

Fig 1: Brake Switch Circuit

GC0131924

Courtesy of CHRYSLER LLC
