P0440-General EVAP System Failure: Notes

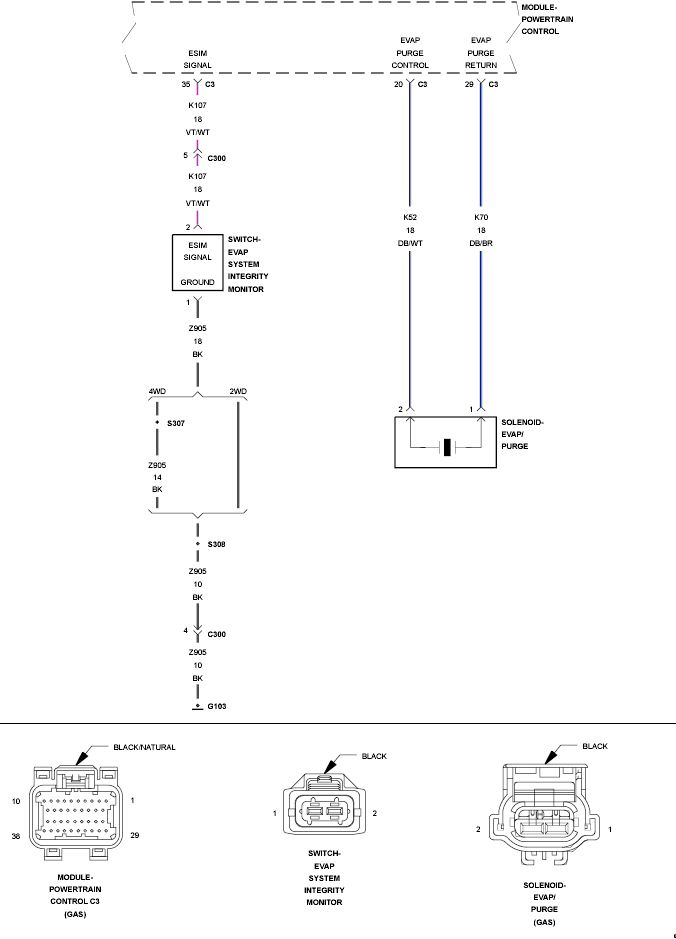

Fig 1: EVAP Purge Solenoid Circuit

GC0131916

Courtesy of CHRYSLER LLC
