P0111-Intake Air Temperature Sensor Rationality: Notes

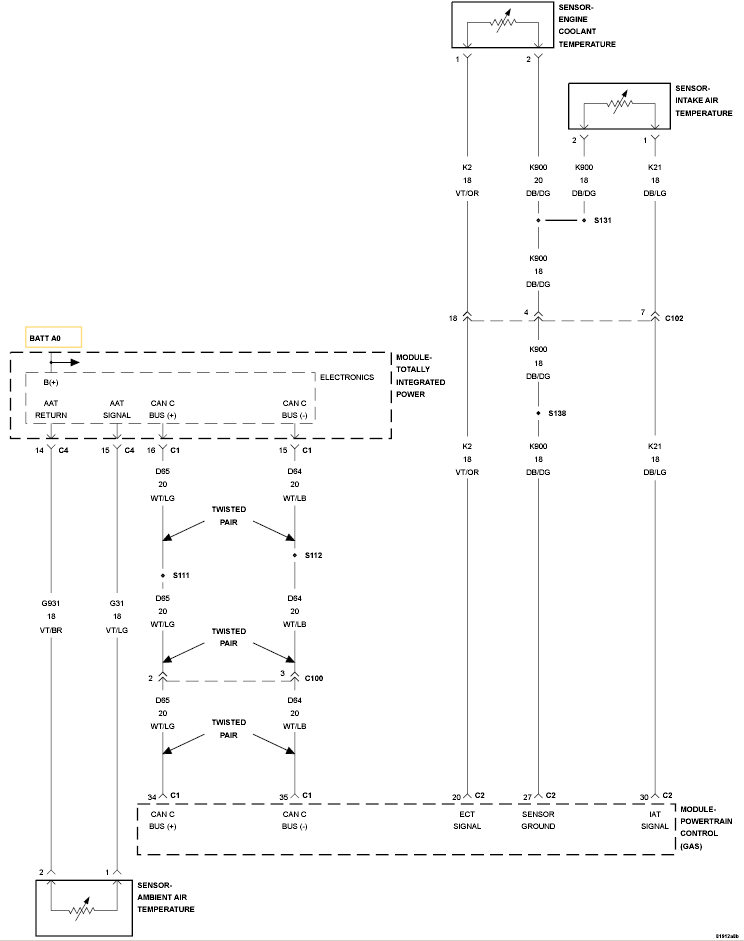

Fig 1: Ambient Air Temperature Sensor Circuit

GC0131847

Courtesy of CHRYSLER LLC
