P0037-O2 Sensor 1/2 Heater Circuit Low: Notes

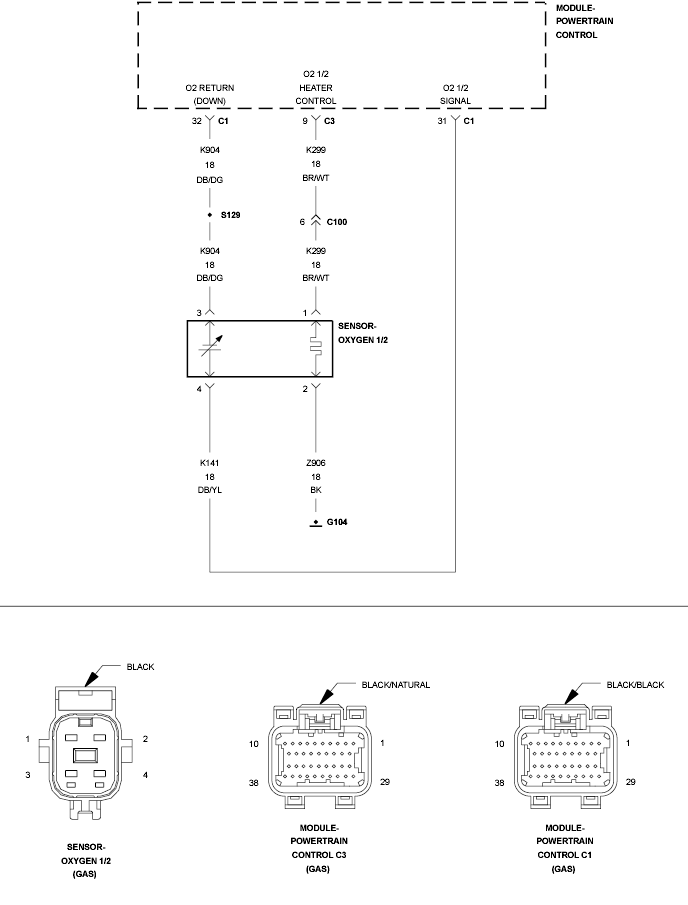

Fig 1: O2 Sensor Heater Circuit

GC0131877

Courtesy of CHRYSLER LLC
