Firing Order - 3.8L

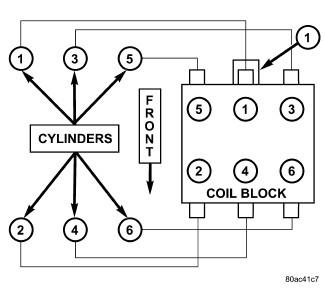

Fig 1: Firing Order 1-2-3-4-5-6 3.8L

GC0130772

Courtesy of CHRYSLER LLC

1 - Electrical Connector
