RELAY, Glow Plug: Removal: Removal

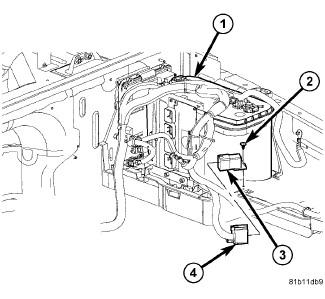

Fig 1: GLOW PLUG RELAY - RHD
GC0130774Courtesy of CHRYSLER LLC
  1. RIGHT HAND DRIVE:
  2. The glow plug relay (3) is located near the front of the battery (1).
  3. Disconnect negative battery cable.
  4. Carefully pull out mounting pin (2).
  5. Disconnect electrical connector (4) from relay.

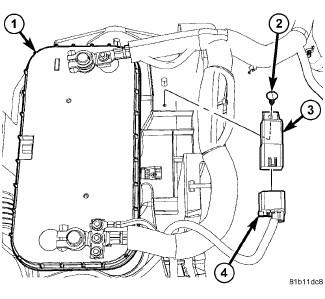

    Fig 2: GLOW PLUG RELAY - LHD
    GC0124645Courtesy of CHRYSLER LLC
  6. LEFT HAND DRIVE:
  7. The glow plug relay (3) is located near the side of the battery (1).
  8. Disconnect negative battery cable.
  9. Carefully pull out mounting pin (2).
  10. Disconnect electrical connector (4) from relay.
