TRAY, Battery: Installation: Installation

Fig 1: Identifying Battery Tray Components

Courtesy of CHRYSLER LLC

WARNING: The battery negative and positive cable polarity are different from the gasoline engine equipped vehicles to the diesel engine equipped vehicles. Please note the location of the positive and negative cables prior to service of the battery or related components.

NOTE: Left hand drive gasoline engine shown in illustration, left hand drive diesel similar. Right hand drive gasoline and diesel similar with the battery and related components packaged on the left side of the engine compartment.

1. Position the battery tray (4) into the engine compartment.
2. Loosely install the one nut (3) and four bolts (2 and 5) securing the battery tray (4) to the vehicle.
3. Tighten the nut to 10.5 N.m (93 in. lbs.)
4. Tighten the bolts to 10.5 N.m (93 in. lbs.)
5. Install the Totally Integrated Power Module (TIPM). Refer to Electrical - Wiring/Power Distribution/MODULE, Totally Integrated Power (TIPM) - Installation .
6. Install the battery. See Electrical - Engine Systems/Battery System/BATTERY - Installation .

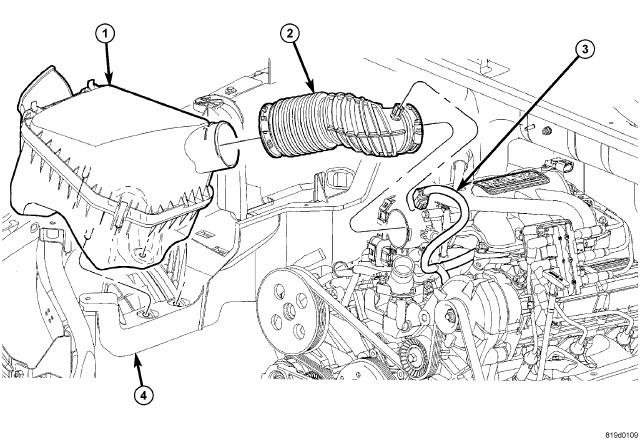

   Fig 2: Removing/Installing Battery From Air Cleaner Assembly

   Courtesy of CHRYSLER LLC
7. Install the air cleaner assembly (1) to the battery tray (4) by pushing down on the air cleaner to fully engage the mounting pins.
8. Connect the fresh air tube (2) to the air cleaner assembly (1).
9. Connect the battery negative cable.
