SWITCH, Power Window: Removal: Removal: Front

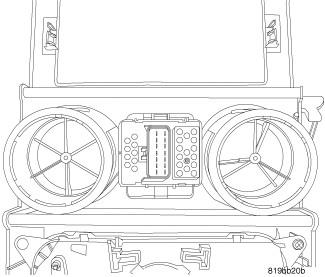

Fig 1: Identifying Front Power Window Switch
GC0130830Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the center bezel.
  3. Disconnect electrical connector.
  4. Remove switch from assembly.
