Home >> Jeep >> 2009 >> Wrangler Sahara, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0131 To P0204 - NGC >> P0204-Fuel Injector 4 Circuit >> Notes

P0204-Fuel Injector 4 Circuit: Notes

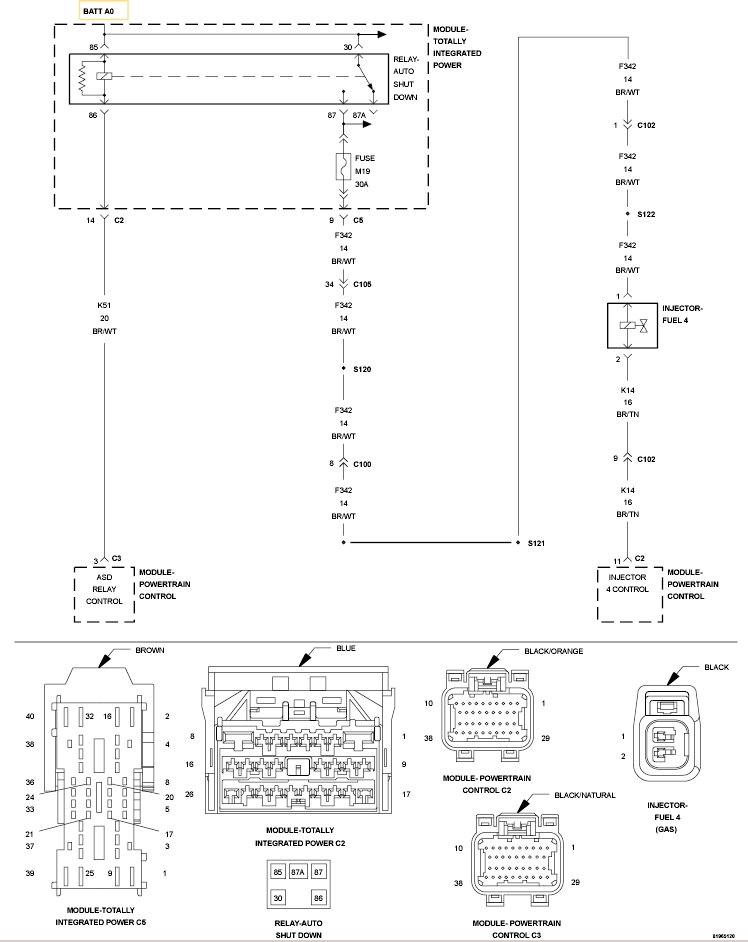

Fig 1: Fuel Injector 4 Circuit

GC0131888

Courtesy of CHRYSLER LLC
