P0108-Manifold Absolute Pressure Sensor Circuit High: Notes

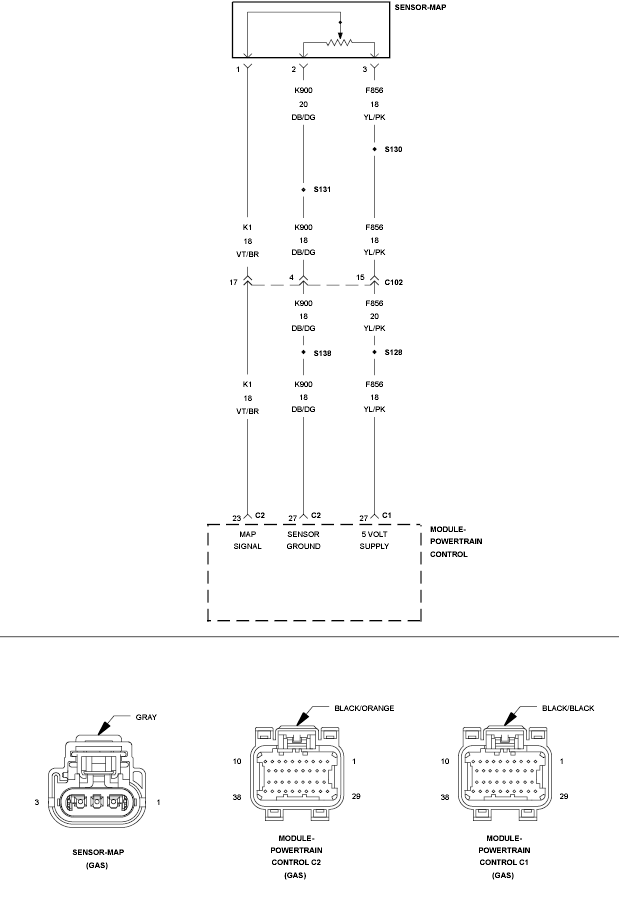

Fig 1: Manifold Absolute Pressure Sensor Circuit

GC0131881

Courtesy of CHRYSLER LLC
