Diagnostic Test

WARNING: This page is about a different variant/trim than selected.

CHECK DTCS
1. With the scan tool, read DTCs.
  Are there any TIPM TCM Power Control Circuit or TCM Power Input DTCs present?

  Yes
  - See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - Go to step 2
CHECK IF LINE PRESSURE DTCS ARE PRESENT
1. With the scan tool, read Transmission DTCs.
  Are there any Line Pressure DTCs present?

  Yes
  - See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
  No
  - Go to step 3
CHECK FOR OTHER PRESSURE SWITCH DTCS
1. With the scan tool, read Transmission DTCs.
  Are there two or more other pressure switch rationality DTCs present in addition to P0871?

  Yes
  - Go to step 5
  No
  - Go to step 4
CHECK IF DTC IS CURRENT
1. With the scan tool, read and record the Event Data.
  NOTE: Make sure to record all Event Data stored in the scan tool for future reference in this test procedure.

  Does the Event Data show data for P0871

  Yes
  - Go to step 8
  No
  - See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Diagnosis and Testing and perform the appropriate diagnostic procedure.
CHECK IF RELATED DTC IS PRESENT
1. With the scan tool, read and record the Event Data.
  NOTE: Make sure to record all Event Data stored in the scan tool for future reference in this test procedure.

  Do all the pressure switches read CLOSED in the Event Data?

  Yes
  - See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Diagnosis and Testing and perform the diagnostic procedure for P0882. Follow instructions as if the DTC is current.
  No
  - Go to step 6
CHECK IF PRESSURE SWITCHES READ OPEN
1. In the Event Data recorded earlier, read the state of all pressure switches.
  Do all the pressure switches read open?

  Yes
  - Go to step 7
  No
  - Go to step 8
CHECK FOR LOW LINE PRESSURE
1. In the Event Data recorded earlier, compare the Line Pressure to the Desired Line Pressure.
  Is the Line Pressure less than 40 psi, and significantly below the Desired Line Pressure?

  Yes
  - Repair as necessary to correct low line pressure. Check fluid level and adjust as necessary. If fluid level is OK, check the Primary Oil Filter weal for a spit, crack, or improperly installed. If the filer and seal are OK, check the Main Regulator Valve in the Oil Pump. Refer to the Service Information for the above procedures.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Replace Transmission Solenoid/TRS Assembly in accordance with the Service Information. Refer to SOLENOID, PRESSURE CONTROL .
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
CHECK IF IN PARK, NEUTRAL, OR REVERSE
1. Ignition on, engine not running.
2. With the scan tool, read and record the Event Data for P0871.
  NOTE: Make sure to record all Event Data stored in the scan tool for future reference in this test procedure.

  Does the Event Data show the OD Pressure Switch DTC set while in Park, Neutral, or Reverse?

  Yes
  - Go to step 18
  No
  - Go to step 9
CHECK IF THE OD PRESSURE SWITCH WAS OPEN
1. Refer to the Event Data recorded earlier for P0871.
  Did the OD Pressure Switch read OPEN?

  Yes
  - Go to step 10
  No
  - Go to step 15
CHECK FOR LOW LINE PRESSURE
1. Refer to the Event Data recorded earlier and compare the Line Pressure and the Desired Line Pressure.
  Is the Line Pressure less than 40 psi, and significantly below the Desired Line Pressure?

  Yes
  - Repair as necessary to correct low line pressure. Check the fluid level. Check the Primary Oil Filter seal for a split, crack, or improperly installed. Refer to the Service Information for the proper installation procedure. If the fluid level and filter are OK, check the Main Regulator Valve in the Oil Pump.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 11
CHECK THE (T9) OD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT

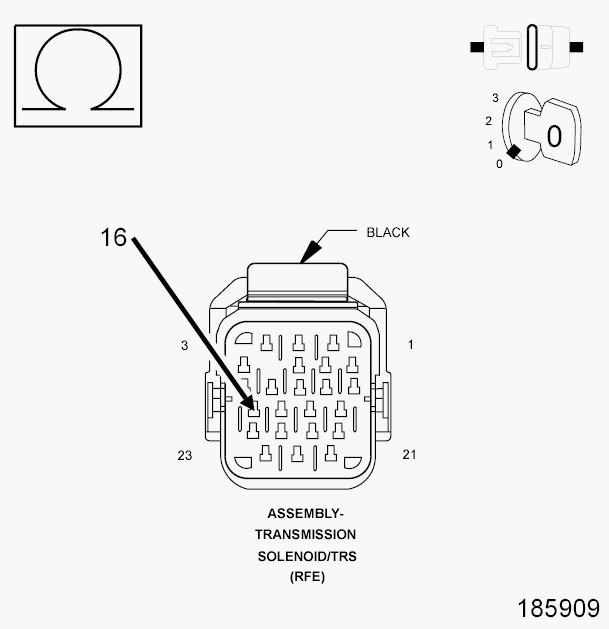

Fig 1: Checking OD Pressure Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect all PCM harness connectors.
3. Disconnect the Transmission Solenoid/TRS Assembly harness connector.
4. Measure the resistance between the (T9) OD Pressure Switch Sense circuit and all other circuits in the Transmission Solenoid/TRS Assembly harness connector.
  Is the resistance below 5.0 Ohms between the (T9) OD Pressure Switch Sense circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?

  Yes
  - Repair the (T9) OD Pressure Switch Sense circuit for a short to another circuit(s).
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 12
CHECK TO SEE IF THE DTC RESETS
1. Reconnect all previously disconnected connectors.
2. With the scan too, erase transmission DTCs.
3. Test drive the vehicle, use the Event Data recorded earlier to help duplicate the conditions when the DTC originality set.
  Does the DTC P0871 reset?

  Yes
  - Go to step 13
  No
  - Go to step 22
CHECK THE POWERTRAIN CONTROL MODULE (PCM)
1. Remove the Transmission Control Relay.
2. Operate the vehicle in Drive.
  Is the transmission slipping while in Drive?

  Yes
  - Go to step 14
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
AIR CHECK TRANSMISSION CLUTCH OPERATION
1. Perform an Air Check Transmission Clutch Operation procedure in accordance with the Service Information.
  NOTE: The OD/Rev piston contains a small bleed orifice, a small amount of leakage between the OD and Reverse hydraulic clutch circuits is considered normal.

  Is there excessive air leakage in any clutch circuit?

  Yes
  - Check the OD/Rev piston seals and bleed orifice, reaction shaft support seal rings, dribbler orifice assemblies in the reaction shaft support and for poor machine on the pump valve body faces. Refer to the Service Information.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Repair the Valve Body. Check the OD Accumulator piston and seals, OD bleed orifice, and No. 6 check ball cuts or damage. If no problems are found in the Valve Body, replace the Transmission Solenoid/TRS Assembly. Refer to the Service Information for proper repair procedures.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
CHECK THE PCM AND WIRING
1. Turn the ignition off to the lock position.
2. Remove the Ignition Switch Feed fuse from the TIPM.
  CAUTION: Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

  WARNING: The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install Transmission Simulator 8333.
4. Ignition on, engine not running.
5. With the Transmission Simulator, turn the Pressure Switch selector switch to OD.
6. With the scan tool, monitor the OD Pressure Switch state while pressing the Pressure Switch Test button on the Transmission Simulator.
  Did the state of the OD Pressure Switch change from OPEN to CLOSED while pressing the Test button?

  Yes
  - Go to step 16
  No
  - Go to step 18
CHECK IF THE NO. 4 AND/OR NO. 6 CHECK BALL IS CUT OR DAMAGED
1. With the scan tool, erase previously stored DTCs and test drive the vehicle, use the Event Data to help duplicate the conditions when the DTC originality set. Note any DTCs that may set.
2. Remove the Transmission Valve Body in accordance with the Service Information.
3. Check the No. 4 and No. 6 Check Balls for cuts or damage.
  Is the No. 4 and/or No. 6 Check Ball cut or damaged?

  Yes
  - Replace the No. 4 and/or No. 6 Check Ball and check for clutch debris in the transmission oil pan. If there is excessive debris, perform internal repairs to the OD Clutch Assembly. Refer to the Service Information for proper repair procedures.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 17
CHECK THE TRANSMISSION SOLENOID/TRS ASSEMBLY
Did the DTC P0871 reset during the test drive in the previous step?

Yes
- Replace Transmission Solenoid/TRS Assembly in accordance with the Service Information. Refer to SOLENOID, PRESSURE CONTROL .
- Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
No
- Go to step 22
CHECK THE (T9) OD PRESSURE SWITCH SENSE CIRCUIT FOR AN OPEN

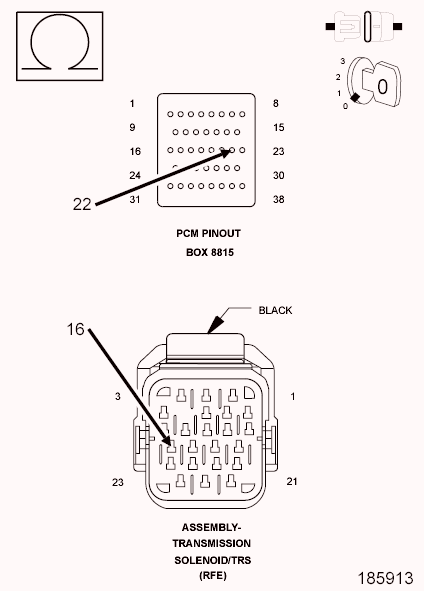

Fig 2: Checking OD Pressure Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the PCM C4 harness connector and connect the PCM Pinout Box 8815.
3. Disconnect the Transmission Solenoid /TRS Assembly harness connector
  CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
4. Measure the resistance of the (T9) OD Pressure Switch Sense circuit from the appropriate terminal of the PCM Pinout Box 8815 to the Solenoid/TRS Assembly harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (T9) OD Pressure Switch Sense circuit for an open.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 19
CHECK THE (T9) OD PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND

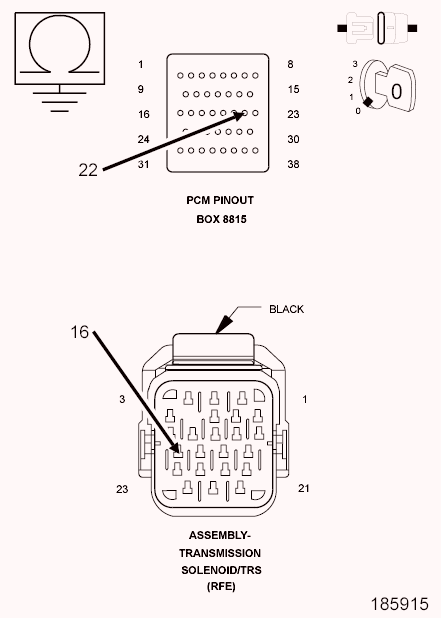

Fig 3: Checking OD Pressure Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (T9) OD Pressure Switch Sense circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T9) OD Pressure Switch Sense circuit for a short to ground.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 20
CHECK WIRING AND CONNECTORS
1. Using the schematics as a guide, inspect the wiring and connectors. Pay particular attention to all power and ground circuits.
  Were there any problems found

  Yes
  - Repair as necessary.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 21
CHECK THE POWERTRAIN CONTROL MODULE (PCM)
1. Reconnect all previously disconnected connectors.
2. Make sure all Event Data is recorded.
3. With the scan tool, erase previously stored DTCs and test drive the vehicle, use the Event Data to help duplicate the conditions when the DTC originality set.
  Does the DTC P0871 reset?

  Yes
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Go to step 22
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
  Where there any problems found?

  Yes
  - Repair as necessary.
  - Perform the 545RFE TRANSMISSION VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Transmission Control (TCM) - Standard Procedure .
  No
  - Test Complete.
