MODULE, Power Inverter: Description: Description

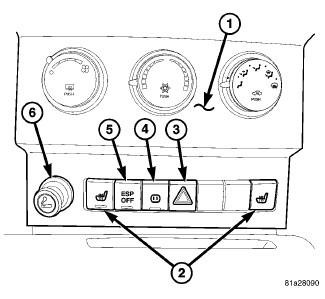

The inverter module is located under the right rear seat cushion. The A/C outlet is mounted in the rear of the center floor console. The inverter module provides A/C power for user accessories when the 115 Volt AC outlet switch (4) in the instrument panel center stack (1) is in the "ON" position. The inverter converts the 12 Volt DC from the vehicle battery system to a 115 Volt AC output. The outlet switch is part of the accessory switch bank assembly and is not available for service as an individual part. If the switch is damaged or inoperative the complete accessory switch bank assembly must be replaced. Refer to Electrical/Heated Seats/SWITCH, Heated Seat - Removal for the appropriate procedure.
