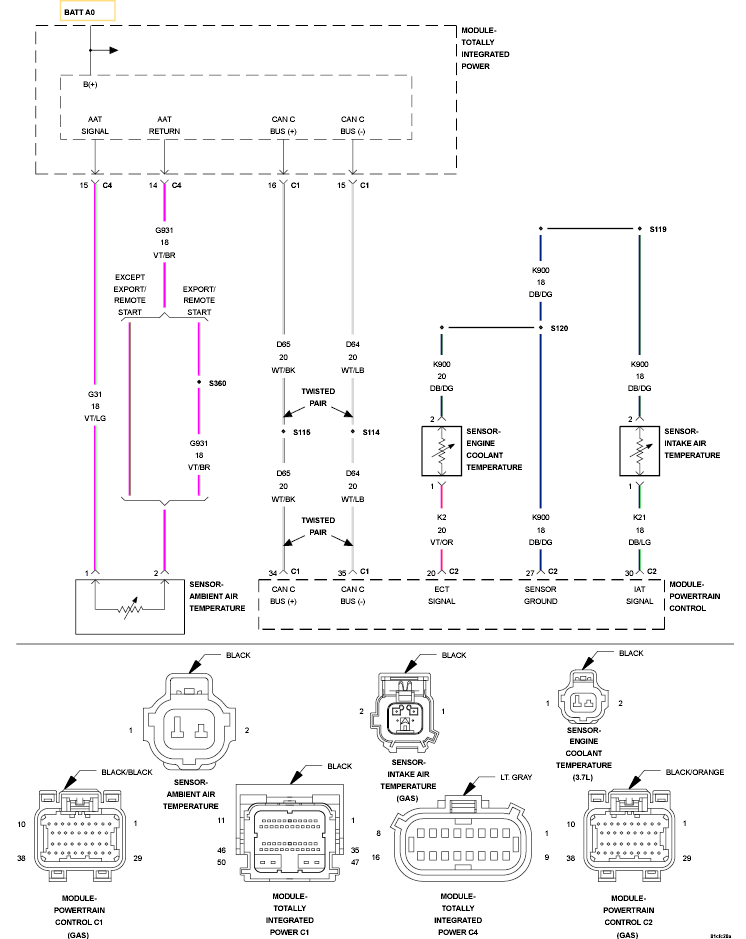

Home >> Jeep >> 2009 >> Liberty Limited, RWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0016 To P0129 (Gas) >> P0116-Engine Coolant Temperature Sensor Circuit Performance >> Circuit Schematic
