P2123-Accelerator Pedal Position Sensor 1 Circuit High: Notes

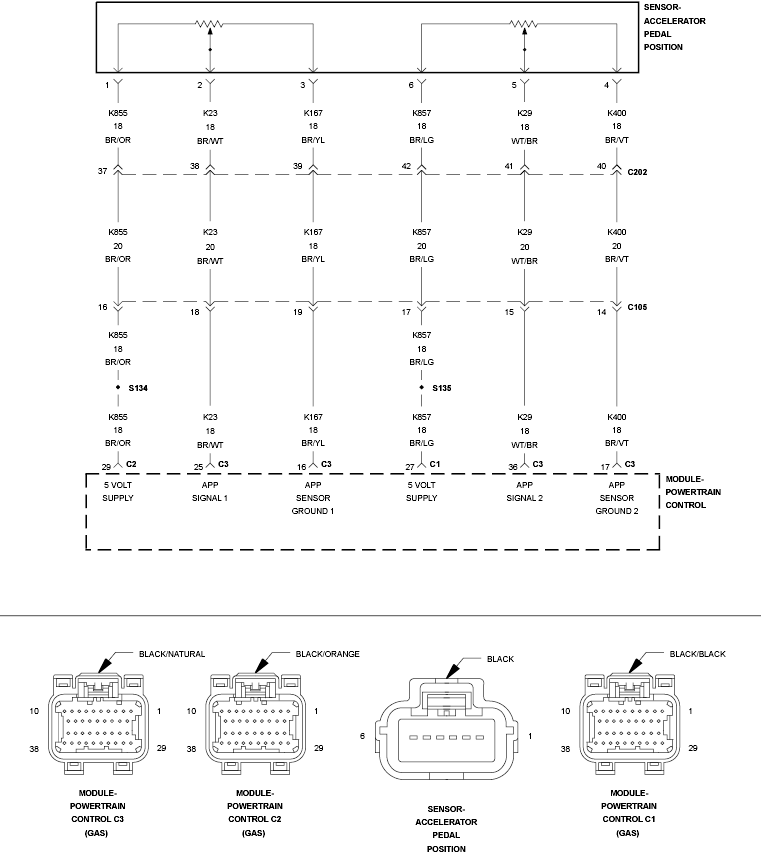

Fig 1: Accelerator Pedal Position Sensor 1 Circuit

GC0102071

Courtesy of CHRYSLER LLC
