Home >> Jeep >> 2009 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0645 To P1697 (Gas) >> P0850-Park/Neutral Switch Performance >> Notes

P0850-Park/Neutral Switch Performance: Notes

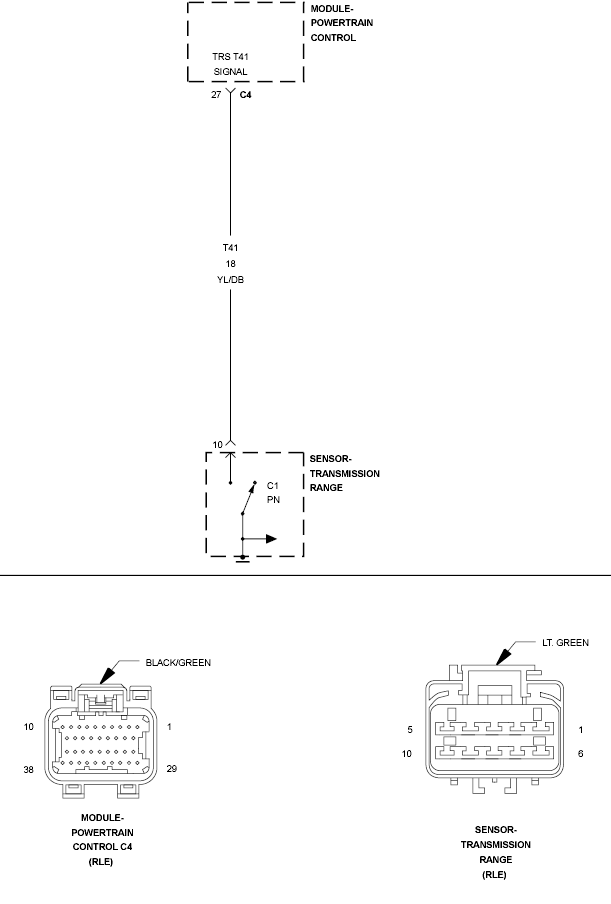

Fig 1: Park/Neutral Switch Circuit

GC0102061

Courtesy of CHRYSLER LLC
