MODULE, Power Inverter: Installation: Installation

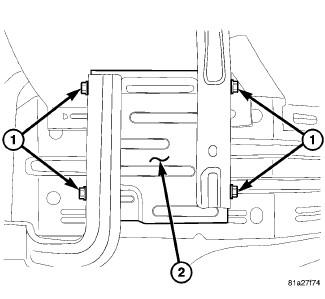

Fig 1: Identifying Inverter Module & Fastners

Courtesy of CHRYSLER LLC

1. Position the inverter module (2) on the mounting bracket assembly.
2. Install the fasteners (1).
3. Install the rear seat assembly. Refer to Body/Seats/SEAT - Installation .
4. Connect the battery negative cable.
