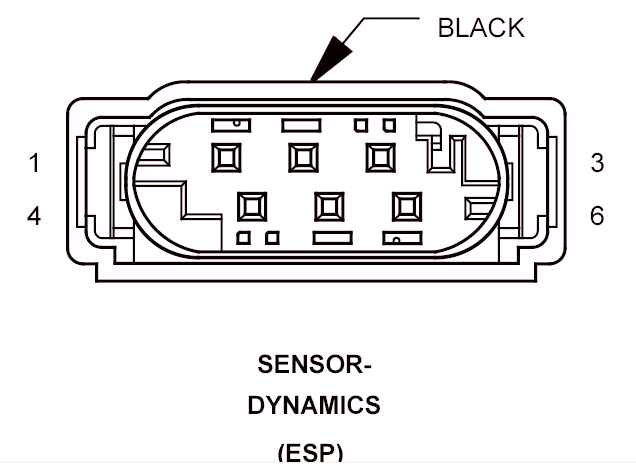

Dynamics Sensor (Electronic Stability Program) Connector End View
SENSOR-DYNAMICS - BLACK 6 WAY (ESP)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z914 16BK |
GROUND |
| 2 |
D464 20WT/YL |
DYNAMICS SENSOR LOW DATA LINK |
| 3 |
D465 20WT/DB |
DYNAMICS SENSOR HIGH DATA LINK |
| 4 |
F941 20PK/LG |
IGNITION SWITCH OUTPUT (RUN-START) |
| 5 |
- |
- |
| 6 |
- |
- |
