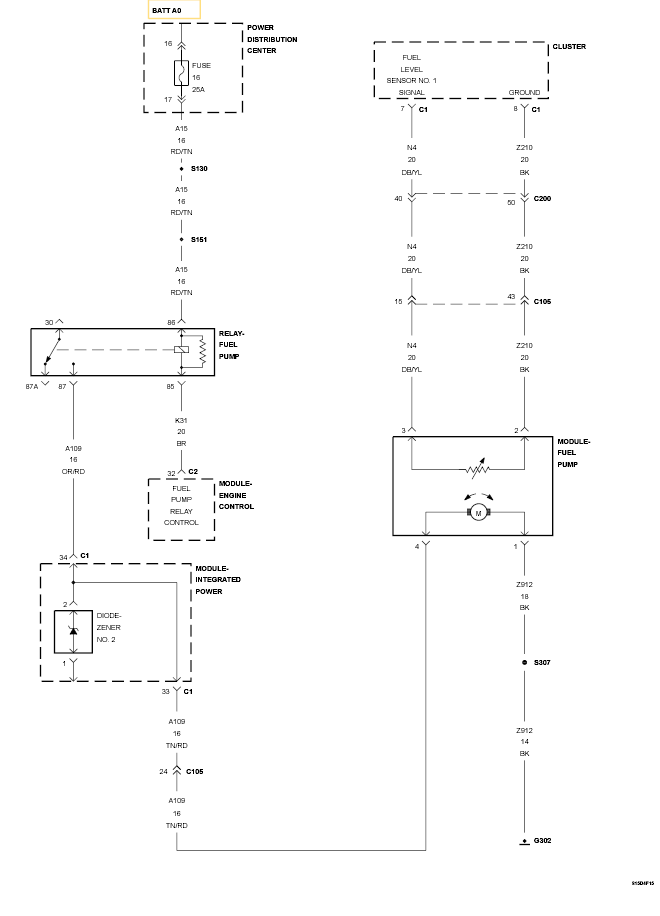

Home >> Jeep >> 2009 >> Grand Cherokee Limited, 3.0 M, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0275 To P0463 - Diesel >> P0461-Fuel Level Sensor 1 Performance >> Circuit Schematic
