Diagnostic Test
- DTC IS ACTIVE
- Ignition on, engine not running.
- With the scan tool, Clear DTCs in the Engine Control Module (ECM).
- With the scan tool, actuate the Oxygen Sensor Heater.
- Monitor the scan tool for at least two minutes.
- With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes
- Go to step 2
No
- Refer to the INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Engine Control (ECM) - Standard Procedure

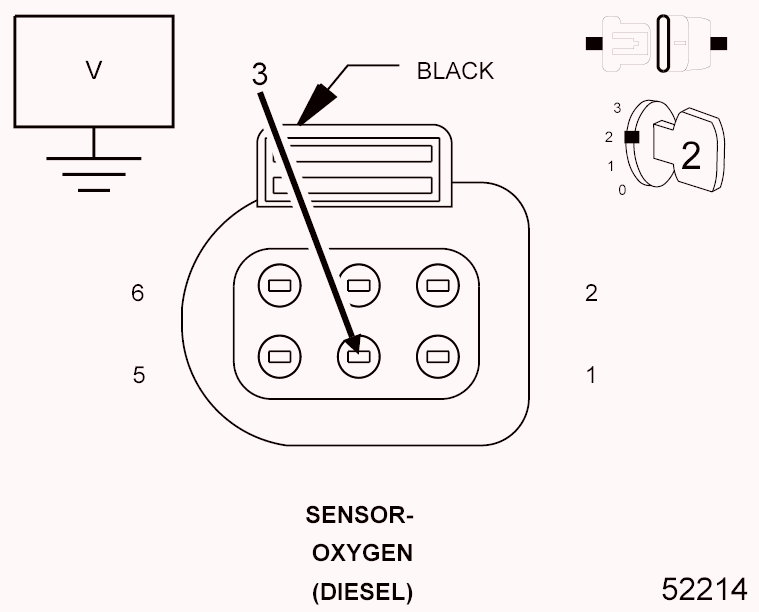

- (K99) O2 1/1 HEATER CONTROL CIRCUIT SHORTED TO VOLTAGE
Courtesy of CHRYSLER LLC
- Turn the ignition off.
- Disconnect the Oxygen Sensor harness connector.
- Disconnect the Engine Control Module (ECM) harness connector.
- Remove the ASD Relay from the PDC.
- Connect a jumper wire between cavity 30 and cavity 87 of the ASD Relay Connector.
- Turn the ignition on.
- Measure the voltage of the (K99) O2 1/1 Heater Control circuit in the Oxygen Sensor harness connector.
Is there any voltage present?
Yes
- Repair the (K99) O2 1/1 Heater Control circuit for a short to voltage.
- Perform the ECM Verification Test. See DTC-Based Diagnostics/MODULE, Engine Control (ECM) - Standard Procedure .
No
- Go to step 3

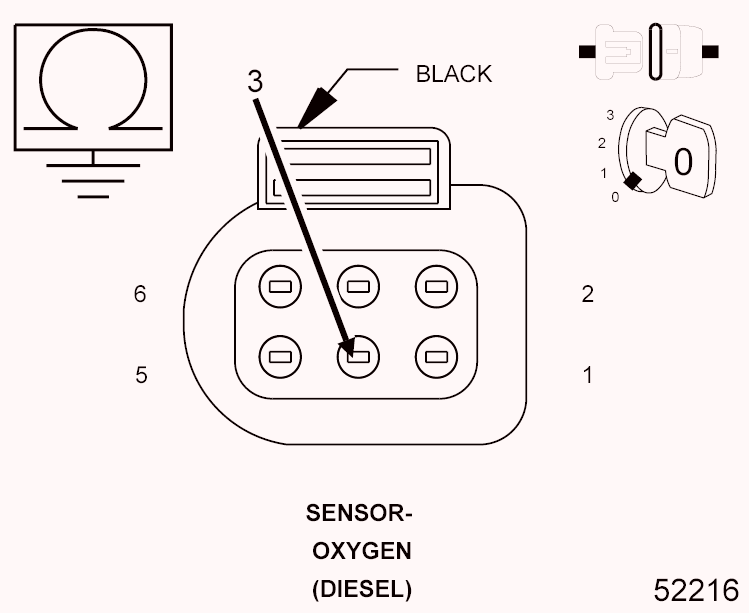

- (K99) O2 1/1 HEATER CONTROL CIRCUIT SHORTED TO GROUND Fig 2: Measuring Resistance Between Ground And O2 Sensor Heater Control Circuit In Oxygen Sensor Harness Connector
Courtesy of CHRYSLER LLC
- Turn the ignition off.
- Remove the jumper wire and install the ASD relay.
- Measure the resistance between ground and the (K99) O2 1/1 Heater Control circuit in the Oxygen Sensor harness connector.
Is the resistance above 1000 ohms?
Yes
- Go to step 4
No
- Repair the (K99) O2 1/1 Heater Control circuit for a short to ground.
- Perform the ECM Verification Test. See DTC-Based Diagnostics/MODULE, Engine Control (ECM) - Standard Procedure .

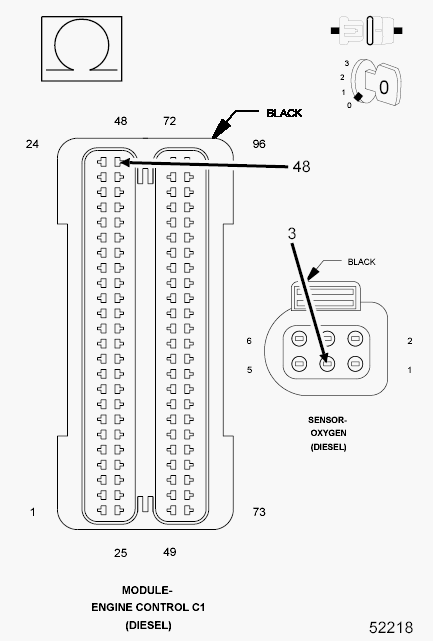

- (K99) O2 1/1 HEATER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE Fig 3: Measuring Resistance Of O2 Sensor Heater Control Circuit Between Oxygen Sensor Harness Connector And Engine Control Module (ECM) Harness Connector
Courtesy of CHRYSLER LLC
- Measure the resistance of the (K99) O2 1/1 Heater Control circuit between the Oxygen Sensor harness connector and the Engine Control Module (ECM) harness connector.
Is the resistance below 10.0 ohms?
Yes
- Go to step 5
No
- Repair the (K99) O2 1/1 Heater Control circuit for an open circuit or high resistance.
- Perform the ECM Verification Test. See DTC-Based Diagnostics/MODULE, Engine Control (ECM) - Standard Procedure .
- Measure the resistance of the (K99) O2 1/1 Heater Control circuit between the Oxygen Sensor harness connector and the Engine Control Module (ECM) harness connector.

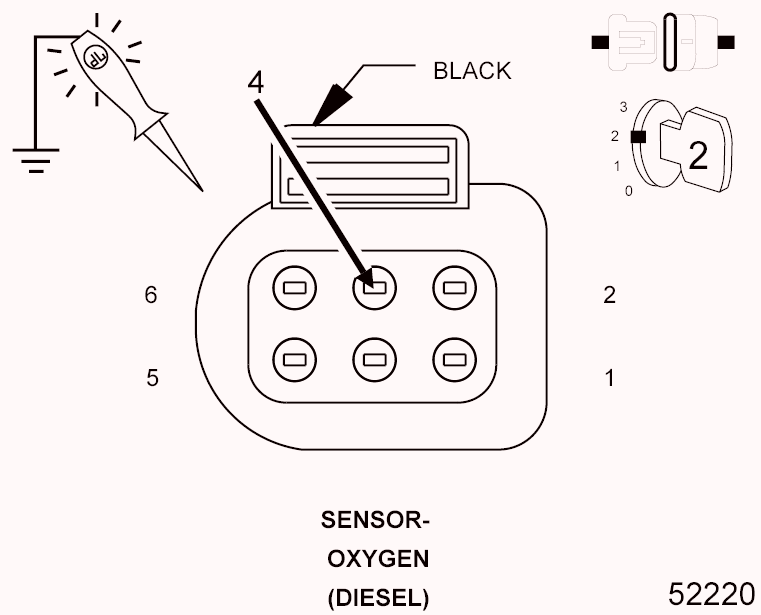

- (A15) FUSED ASD RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE Fig 4: Measuring Resistance Of Fused ASD Relay Output Circuit Between Oxygen Sensor Harness Connector And ASD Relay Connector
Courtesy of CHRYSLER LLC
- Measure the resistance of the (A15) Fused ASD Relay Output circuit between the Oxygen Sensor harness connector and the ASD Relay connector.
Is the resistance below 10.0 ohms?
Yes
- Go to step 6
No
- Repair the (A15) Fused ASD Relay Output circuit for an open circuit or high resistance.
- Perform the ECM Verification Test. See DTC-Based Diagnostics/MODULE, Engine Control (ECM) - Standard Procedure .
- Measure the resistance of the (A15) Fused ASD Relay Output circuit between the Oxygen Sensor harness connector and the ASD Relay connector.
- OXYGEN SENSOR
- Turn the ignition off.
- Connect the Engine Control Module (ECM) harness connector.
- Replace the Oxygen Sensor in accordance with the Service Information.
- Start the engine.
- Allow the engine to reach normal operating temperature.
- Monitor the scan tool for at least two minutes.
- With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes
- Go to step 7
No
- Test Complete.
- Perform the ECM Verification Test. See DTC-Based Diagnostics/MODULE, Engine Control (ECM) - Standard Procedure .
- ENGINE CONTROL MODULE (ECM)
- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oxygen Sensor and the Engine Control Module (ECM).
- Look for any chafed, pierced, pinched, or partially broken wires.
- Look for broken, bent, pushed out or corroded terminals.
- Check for any Technical Service Bulletins that may apply.
