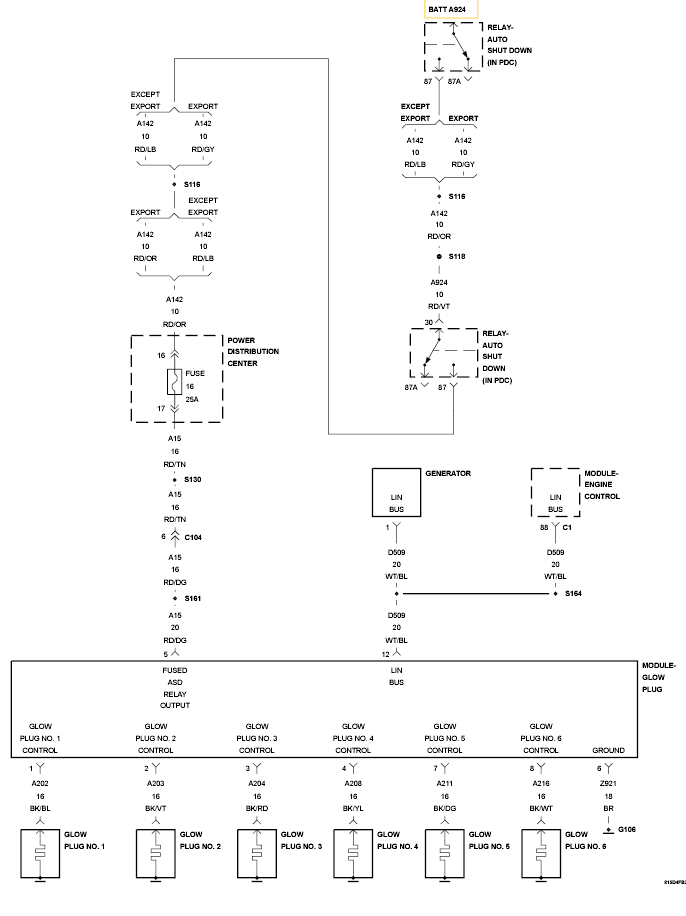

Home >> Jeep >> 2009 >> Grand Cherokee Laredo, 3.0 M, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0675 To P2002 - Diesel >> P1648-Glow Plug Module Internal >> Circuit Schematic
