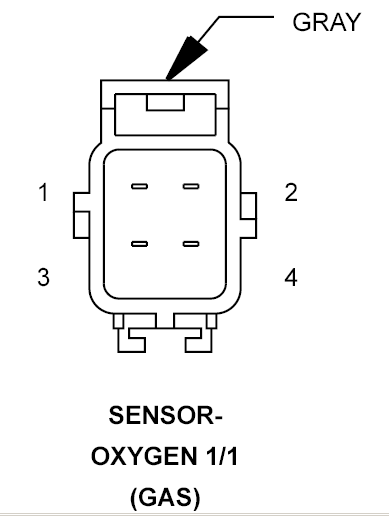

Oxygen Sensor 1/1 (Gas) Connector End View
SENSOR-OXYGEN 1/1 - GRAY 4 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z909 20BK/WT |
GROUND |
| 2 |
K99 20BR/OR |
O2 1/1 HEATER CONTROL |
| 3 |
K902 20BR/DG |
O2 1/1 NEGATIVE CURRENT CONTROL |
| 4 |
K41 20BK/DG |
O2 1/1 REFERENCE SIGNAL |
