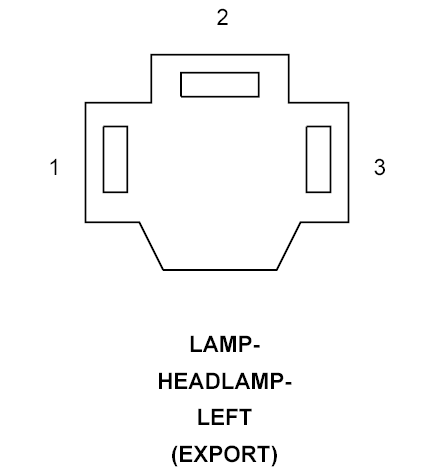

Left Headlamp Lamp (Export) Connector End View

LAMP-HEADLAMP-LEFT - 3 WAY (EXPORT)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L33 20WT/PK	LEFT HIGH BEAM OUTPUT
2	L43 20WT/DB	LEFT LOW BEAM OUTPUT
3	Z904 20BK/LG	GROUND
