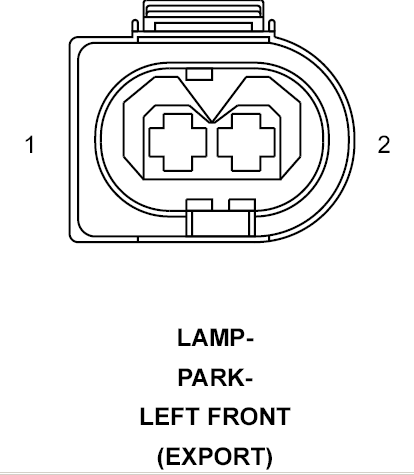

Left Front Park Lamp (Export) Connector End View
Left Front Park Lamp (Export) Connector End View
LAMP-PARK-LEFT FRONT - 2 WAY (EXPORT) FEMALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z904 20BK/LG
GROUND
2
L7 20WT/YL
HEADLAMP SWITCH OUTPUT
Courtesy of CHRYSLER CORP.
