Inline Connector End View (C300 )

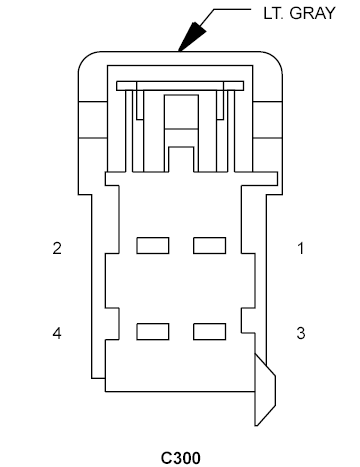

C300 - LT. GRAY 4 WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K107 18VT/LB |
ESM SIGNAL |
| 2 |
Z965 20BK |
GROUND |
| 3 |
T312 20YL/VT |
REAR DIFFERENTIAL SOLENOID CONTROL |
| 4 |
T78 20YL |
SOLENOID SUPPLY VOLTAGE |

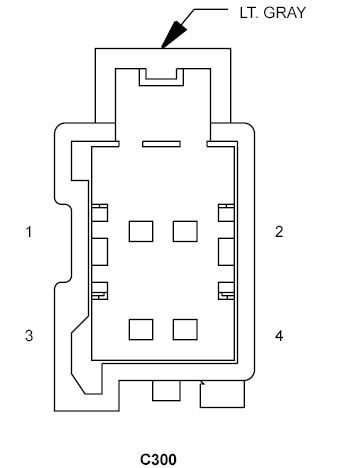

C300 - LT. GRAY 4 WAY MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K107 20VT/LB |
ESM SIGNAL |
| 2 |
Z965 20BK/GY |
GROUND |
| 3 |
T312 20YL/VT |
REAR DIFFERENTIAL SOLENOID CONTROL |
| 4 |
T78 20YL/BK |
SOLENOID SUPPLY VOLTAGE |
