Hood Ajar Switch (Export) Connector End View
Hood Ajar Switch (Export) Connector End View

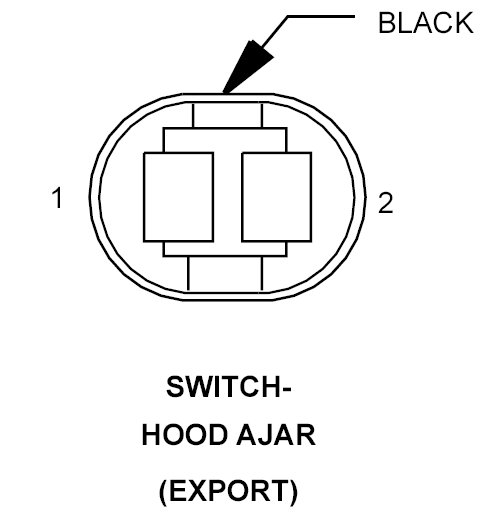

SWITCH-HOOD AJAR - BLACK 2 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G70 20VT/LB
HOOD AJAR SWITCH SENSE
2
Z908 20BK/PK
GROUND
