Fuel Injector 1 (Gas) Connector End View
Fuel Injector 1 (Gas) Connector End View

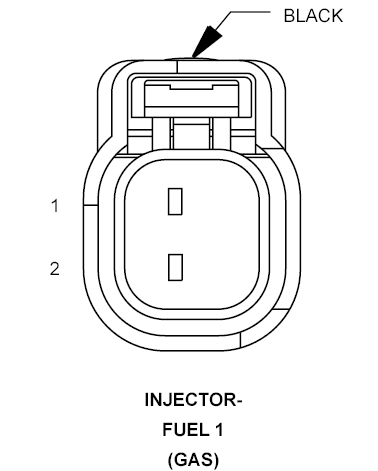

INJECTOR-FUEL 1 - BLACK 2 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K11 20YL/BR
INJECTOR 1 CONTROL
2
F343 20DB/LG
FUSED MAIN RELAY OUTPUT
Courtesy of CHRYSLER CORP.
