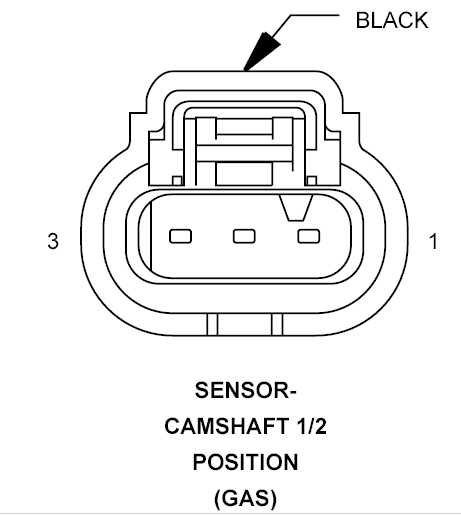

Camshaft Position Sensor 1/2 (Gas) Connector End View

SENSOR-CAMSHAFT 1/2 POSITION - BLACK 3 WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F855 20PK/YL	5 VOLT SUPPLY
2	K915 20BR/WT	SENSOR GROUND
3	K441 20DB/BR	CMP 1/2 SIGNAL
