P0703-Brake Switch 2 Performance: Notes

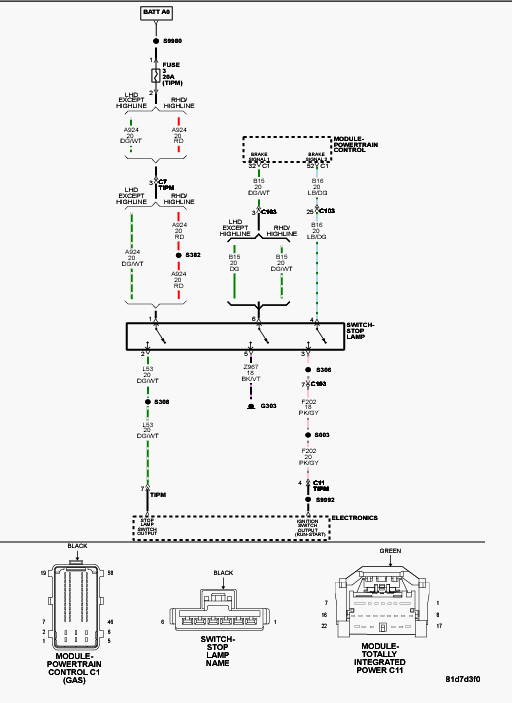

Fig 1: Brake Switch Circuit

GC0099961

Courtesy of CHRYSLER LLC
