B212C-Ignition Run/Start Input Circuit Open: Notes

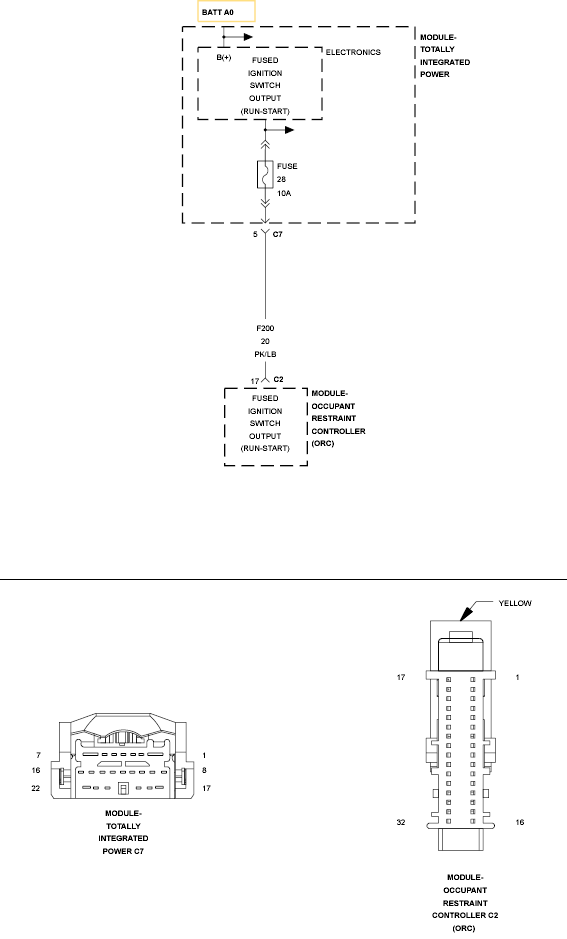

Fig 1: Ignition Run/Start Input Circuit

GC0099302

Courtesy of CHRYSLER LLC
