Sensor, Crankshaft Position: Installation: Installation

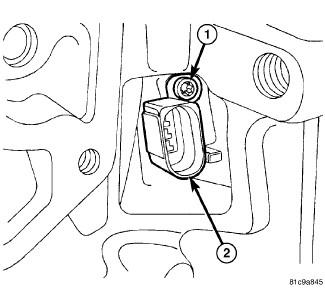

Fig 1: 2.0L Diesel Crankshaft Position Sensor Bolts

Courtesy of CHRYSLER LLC

Install the crankshaft position sensor (2).
Install the crankshaft position sensor bolt (1), and tighten to 5 Nm (44 in. lbs).
Reconnect the crankshaft position sensor harness connector.

Fig 2: 2.0L Diesel Oil Cooler
Courtesy of CHRYSLER LLC
Install the oil cooler/filter assembly, and install the 4 oil cooler/filter adapter assembly bolts (1). Tighten the bolts in two stages, first to 15 Nm (11 ft. lbs), then an additional 90°.

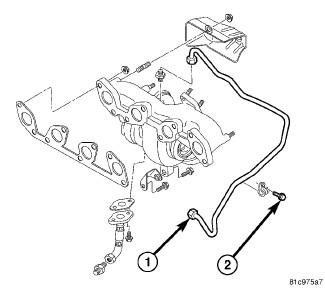

Fig 3: 2.0L Turbo Oil Line
Courtesy of CHRYSLER LLC
Connect the turbocharger oil supply line (1) to the oil cooler assembly. Tighten oil supply line union nut at the oil cooler connection to 22 Nm (16 ft. lb).
Install the turbocharger oil supply line support bracket bolt (2), and tighten to 10 Nm (88 in. lb).

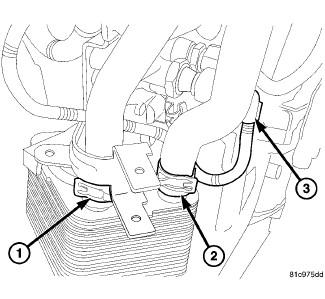

Fig 4: 2.0L Diesel Oil Cooler Line
Courtesy of CHRYSLER LLC
Reconnect the oil pressure sensor harness connector (3).
Reconnect the coolant supply (1) and return (2) lines to the oil cooler assembly.
Install the dipstick tube.
Install the lower dipstick tube support bracket bolt, and the wiring harness bracket bolt to the oil cooler assembly.

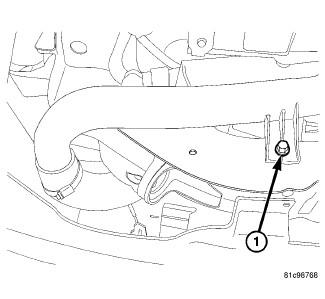

Fig 5: 2.0L Diesel Air Inlet Tube
Courtesy of CHRYSLER LLC
Install the intercooler outlet tube and the bolt (1). Tighten the bolt to 25 Nm (18 ft. lbs).

Fig 6: Boost Pressure Sensor
Courtesy of CHRYSLER LLC
Reconnect the boost pressure sensor harness connector (1).

Fig 7: 2.0L Dipstick Tube Bolts
Courtesy of CHRYSLER LLC
Install the upper dipstick tube support bracket bolt (1).

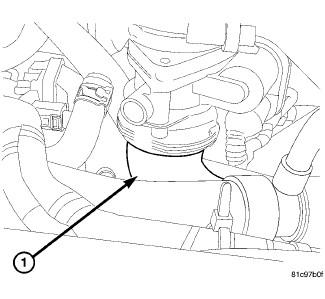

Fig 8: 2.0L Diesel Air Inlet At Throttle Body
Courtesy of CHRYSLER LLC
Reconnect the air inlet hose (1) to the throttle body.

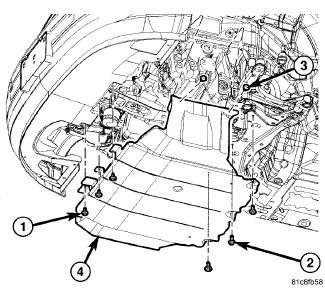

Fig 9: Diesel Belly Pan
Courtesy of CHRYSLER LLC
Install the belly pan (4).
Install the battery tray and battery. Refer to Electrical/Battery System/BATTERY - Installation .
Refill the cooling system. Refer to Cooling - Standard Procedure .
