MODULE, Power Inverter: Installation: Installation

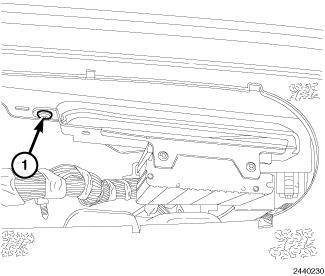

Fig 1: Rear Retainer

Courtesy of CHRYSLER LLC

1. Install power inverter into the mounting bracket.
2. Connect the power inverter electrical connectors.
3. Install the rearward retainer (1).

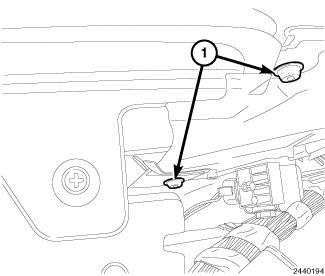

   Fig 2: Forward Retainers

   Courtesy of CHRYSLER LLC
4. Install the two forward retainers (1).

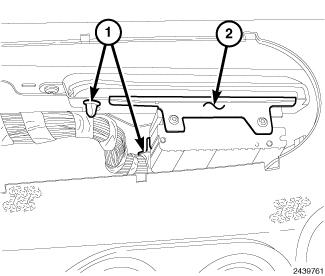

   Fig 3: Harness Push Pins & Power Inverter Bracket

   Courtesy of CHRYSLER LLC
5. Connect the harness push pin (1) to the power inverter bracket (2).

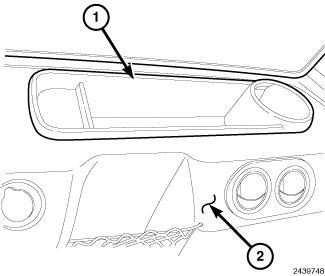

   Fig 4: Cup Holder/Bin & Quarter Panel

   Courtesy of CHRYSLER LLC
6. Instal the cup holder/bin (1) to the drivers side quarter panel (2).
7. Connect the negative battery cable.
