3.0L Diesel

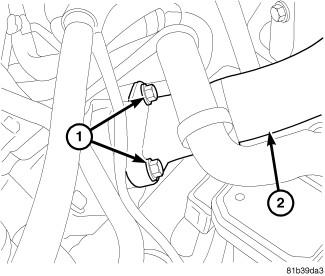

Fig 1: THERMOSTAT - 3.0L DIESEL
GC0118295Courtesy of CHRYSLER LLC
1 - MOUNTING BOLTS
2 - THERMOSTAT HOUSING
  1. Clean all sealing surfaces.
  2. Position and install thermostat with new sealing ring.
  3. Position and install thermostat housing mounting bolts (1). Tighten bolts to 9 N.m (80 lbs.in.).
    NOTE: Inspect condition of all clamps and hoses, replace as necessary.
  4. Connect coolant hoses and vent hose.
  5. Install bracket for fuel line.
  6. Close coolant drain.
  7. Install engine cover. Refer to Engine - Installation .
  8. Connect negative battery cable.
  9. Fill coolant system to proper level with appropriate coolant mixture. See Cooling - Standard Procedure .
    WARNING: Use extreme caution when engine is operating. Do not stand in direct line with fan. Do not put your hands near pulleys, belts or fan. Do not wear loose clothes.
  10. Start engine and inspect for leaks.
